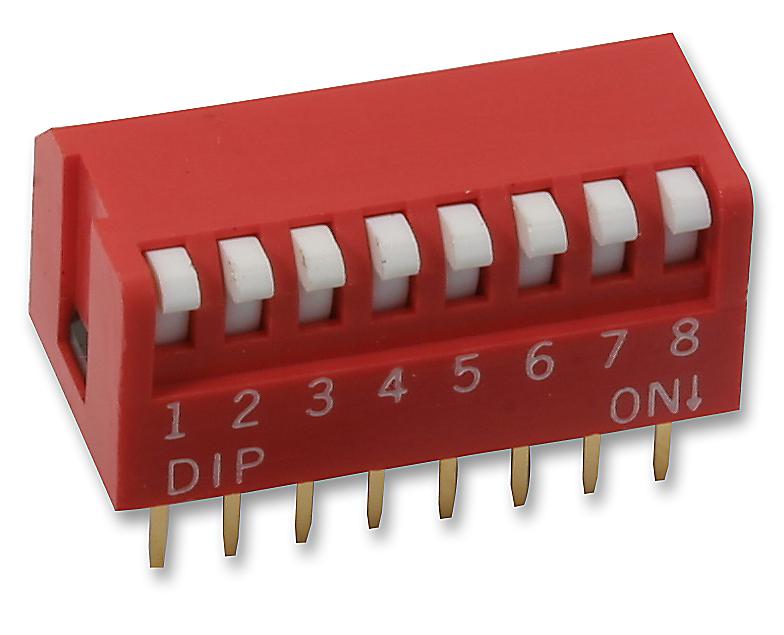

MULTICOMP PRO MCNDP12V DIP Switch
These high-quality DIP switches are ideal for electronic control applications, offering multiple positions such as 2, 3, 4, 5, 6, 8, 9, 10, and 12. Designed with thermoplastic levers, sliders, covers, and bases, these switches feature copper alloy contacts with gold plating for reliable conductivity. Operating at 25mA, 24V DC, with a switching life of 2000 cycles, they withstand harsh conditions with a temperature range from -40°C to +85°C. Their compact design ensures easy integration into various electronic projects needing precise manual switching.
MULTICOMP PRO MCNDP12V DIP Switch Specifications:
- Lever: Thermoplastic PBT UL 94V-0, White
- Slider: Thermoplastic PBT UL 94V-0, White
- Cover: Thermoplastic PBT UL 94V-0, Red
- Base: Thermoplastic PA66 UL 94V-0, Black
- Contact Material: Copper Alloy, Gold Plated
- Terminal Material: Brass, Gold Plated
- Contact Resistance: 50mΩ max
- Insulation Resistance: 100MΩ min at 500V DC
- Dielectric Strength: 500V AC for 1 minute
- Operating Force: 400gf max
- Travel: 225°
- Operating Life: 2000 cycles
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Soldering Temperature: Max 350°C for 5 seconds
- Vibration: MIL-STD-202F Method 201A, 10-55-10 Hz, 2 hrs/direction
- Shock: MIL-STD-202F Method 213B, 50G for 3 cycles
- Solderability: >75% coverage with tin 96.5%, silver 3%, copper 0.5%
- Soldering: Manual at max 350°C, max 5 sec.
- Dimensions for selected model MCNDP-12V: Length 32.04mm (1.261 inches), Width 27.94mm (1.1 inches), Height 5.08mm (0.2 inches)
Buy the Multicomp Series Piano Type DIP Switch: MCNDP12V
Purchase the Multicomp Series Piano Type DIP Switch MCNDP12V online today and enjoy reliable, precise manual switching for your electronic projects. Designed with high-quality thermoplastic components and gold-plated contacts, this 12-position switch offers durability, up to 2000 switching cycles, and operates within a temperature range of -40°C to +85°C. Its compact design makes it ideal for control panels, automation systems, and consumer electronics, ensuring easy integration and long-lasting performance in various industrial and electronic applications.
Order your Multicomp Series Piano Type DIP Switch MCNDP12V today and get dependable switching performance for your electronic control applications.
