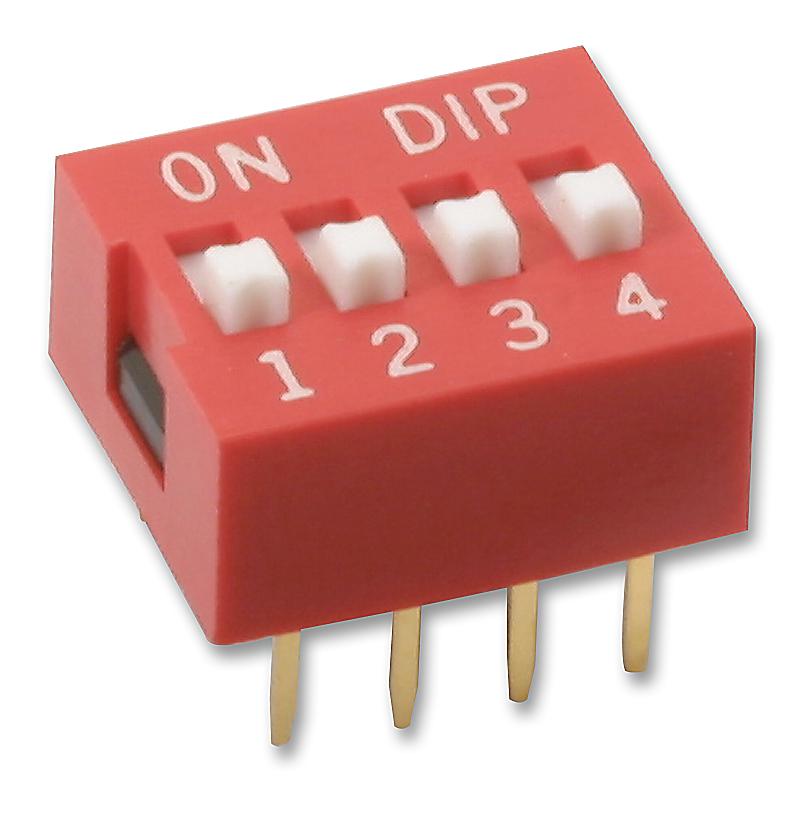

MULTICOMP PRO MCNDS04V DIP Switch
This slide-type DIP switch features multiple positions with a raised red actuator, suitable for industrial control, computer peripherals, and function controls. Its copper alloy contacts are gold plated for reliable performance, with thermoplastic components for durability. The switch has a travel of 2mm, operating temperature from -40°C to +85°C, and an operating life of 2000 cycles. With high dielectric strength, insulation resistance, and compliance with RoHS standards, it is ideal for precise electronic applications requiring solid switching performance.
MULTICOMP PRO MCNDS04V DIP Switch Specifications:
- Actuator : Thermoplastic PBT UL 94V-0 — White
- Cover : Thermoplastic PBT UL 94V-0 — Red
- Contact : Copper Alloy, Gold Plated
- Terminal : Brass, Gold Plated
- Base : Thermoplastic PA66 UL 94V-0 - Black
- Current Rating : Non-Switching 50V DC 100mA, Switching 24V DC 25mA
- Contact Resistance : 50mΩ Max (initial)
- Insulation Resistance : 100MΩ Min. 500V DC
- Dielectric Strength : 500V AC/1 min
- Travel : 2mm
- Operating Temperature : -40°C to +85°C
- Operating Life : 2000 cycles
- Shelf Life : 6 Months
- Soldering Temperature : Max 350°C for 5 sec.
- Vibration Resistance : MIL-STD-202F Method 201A, 10-55-10 Hz, 2 hours each direction
- Shock Resistance : MIL-STD-202F Method 213B, 50G for 11±1ms, 6 sides
- Material : Various thermoplastic and metal components for durability and electrical performance
Buy the Buy multicomp DIP Switch Part Number MCNDS-04V Online
Purchase the multicomp DIP Switch MCNDS-04V online today for high-quality switching solutions in industrial and electronic control applications. Featuring 4 positions, gold-plated copper contacts, and thermoplastic housing, this switch ensures dependable performance and durability. Perfect for projects requiring precise actuation and long operational life, it supports high dielectric resistance and is RoHS compliant. Order now to secure fast delivery and enjoy the convenience of online shopping, guaranteed to meet your technical and quality standards.
Order your multicomp DIP Switch MCNDS-04V today and ensure reliable signal switching with durable thermoplastic and gold-plated contacts.
