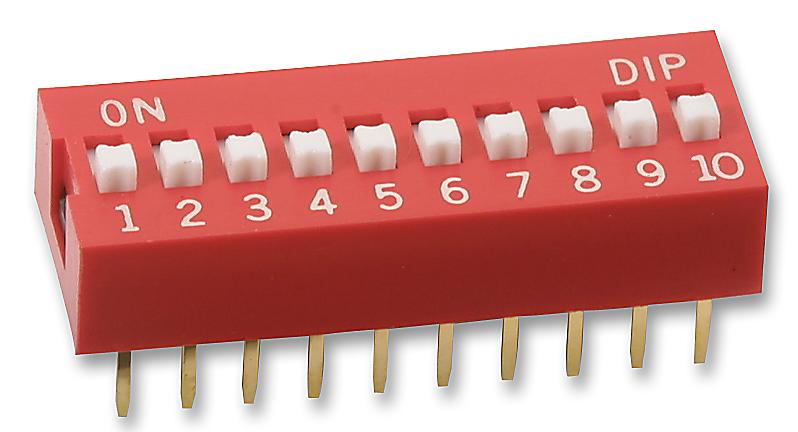

MULTICOMP-PRO MCNDS10V Slide DIP Switch
This slide-type DIP switch features multiple positions from 2 to 12 and is suitable for industrial control, computer applications, and function controls. It has a thermoplastic PBT actuator in white, a thermoplastic PBT cover in red, and contacts made of gold-plated copper alloy for reliable switching. The switch offers a contact resistance of 50mΩ max., insulation resistance of 100MO min., dielectric strength of 500V AC for 1 minute, and operates within -40°C to +85°C. Its operating force is up to 1000gf, with an operational life of 2000 cycles, ensuring durability in demanding environments.
MULTICOMP-PRO MCNDS10V Slide DIP Switch Specifications:
- Actuator: Thermoplastic PBT UL 94V-0 — White
- Cover: Thermoplastic PBT UL 94V-0 — Red
- Contact Material: Copper Alloy, Gold Plated
- Terminal Material: Brass, Gold Plated
- Base Material: Thermoplastic PA66 UL 94V-0 - Black
- Current Rating: Non-Switching 50V DC 100mA, Switching 24V DC 25mA
- Contact Resistance: 50mΩ Max.
- Insulation Resistance: 100MO Min.
- Dielectric Strength: 500V AC/1 min
- Travel: 2mm
- Operating Force: Up to 1000gf
- Operating Temperature: -40°C to +85°C
- Operating Life: 2000 cycles
- Soldering Temperature: Max 350°C for 5 seconds
- Mechanical durability: Shock resistance, vibration, and stop strength tested
- Dimensions vary by model from approximately 6.44mm to 31.84mm in width and length accordingly
- Vibration and Shock resistance in compliance with MIL-STD-202F
Buy the Multicomp Series Slide DIP Switch: MCNDS10V
Purchase the Multicomp Series slide DIP switch MCNDS10V online today for reliable performance in industrial control systems and electronic devices. Featuring multiple positions, gold-plated contacts, and robust thermoplastic construction, this switch is designed for durability and endurance. Its operating temperature range from -40°C to +85°C supports broad environmental conditions. With a contact resistance of 50mΩ and an insulation resistance of 100MO, it ensures dependable switching for demanding applications. Easily integrated into your projects, it guarantees long-lasting performance and precise control, making it an essential component for your electronic solutions.
Get Multicomp MCNDS10V today—built for precision, durability, and reliable switching in industrial control and electronic applications.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCNDS10V?
You can click on the BUY or RFQ button to purchase MCNDS10V from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCNDS10V?
You can download the MCNDS10V datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCNDS10V?
MULTICOMP-PRO
