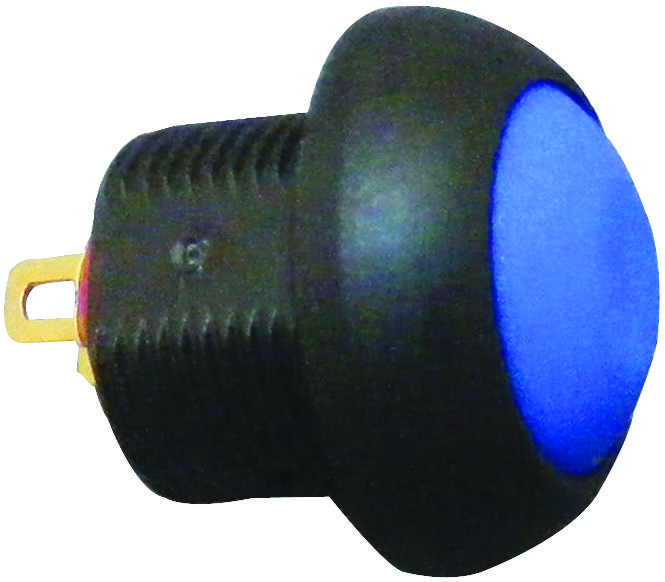

MULTICOMP PRO MCPAS6B1M1CE7 Sub-Miniature Pushbutton Switch
This sub-miniature pushbutton switch from Multicomp Pro provides reliable switching performance suitable for electronic applications. Constructed with high-quality materials like diallyl phthalate (DAP) and polyamide 6/6, it features a 1.5mm total travel, operating force between 2N and 5N, and a mechanical life of 1,000,000 cycles. With RoHS compliance, it supports panel thickness from 0.8mm to 4mm, includes gold over silver contact plating, and is solderable at 350°C. Ideal for control panels requiring precise, durable pushbutton switches with various termination options.
MULTICOMP PRO MCPAS6B1M1CE7 Sub-Miniature Pushbutton Switch Specifications:
- Max. Current/Voltage Rating with Resistive Load: 400mA 32V AC, 100mA 50V DC, 125V AC, 500mA 48V AC, 200mA 50V DC, 200mA 250V AC for metal material
- Initial Contact Resistance: 50mΩ Max.
- Insulation Resistance: 1GΩ min. @ 500V DC
- Dielectric Strength: 1,000 VAC rms. (standard), 1,500 VAC rms. for metal material
- Electrical Life at Full Load: 500,000 cycles
- Operating Temperature: -30°C to 85°C
- Panel Thickness: 0.8mm (0.031") min. to 4mm (0.157") max.
- Total Travel: 1.5mm (0.059")
- Operating Force: 2N to 5N
- Contact Bounce: 10ms
- Mechanical Life: 1,000,000 cycles
- Torque: 0.5Nm max. applied to nut, 1.5Nm max. for metal material
- Soldering: Max 350°C for 5 seconds
- Materials: Case - Diallyl phthalate (UL94V-0), Cap - Polyamide 6/6, Bushing - Polyamide 6/6
- Switch Function: SPST / OFF-MOM / ON-OFF / MOM
- Bushing Plating: Chromium, Stain-nickel, Stain-chromium
- Termination Options: Solder lug, PC thru-hole, Solder lug
- Dimensions: Various mounting dimensions detailed in datasheet, typical 1.5mm travel.
Buy the Buy Multicomp Pro Sub-Miniature Pushbutton Switch Part Number MCPAS6B1M1CE7 Online
Purchase the reliable Sub-Miniature Pushbutton Switch from Multicomp Pro online today. Featuring a 1.5mm travel, 1,000,000-cycle longevity, RoHS compliance, and multiple termination options, this switch is ideal for control panels requiring durability and precision. Its high-quality materials ensure performance across a wide temperature range, supported by a maximum soldering temperature of 350°C. Whether for industrial or electronic applications, this switch offers dependable operation, excellent contact resistance, and easy mounting, making it a perfect choice for professional technicians and project developers alike.
Order your Multicomp Pro Series MCPAS6B1M1CE7 sub-miniature pushbutton switch today and ensure durable, reliable control for your electronic projects.
