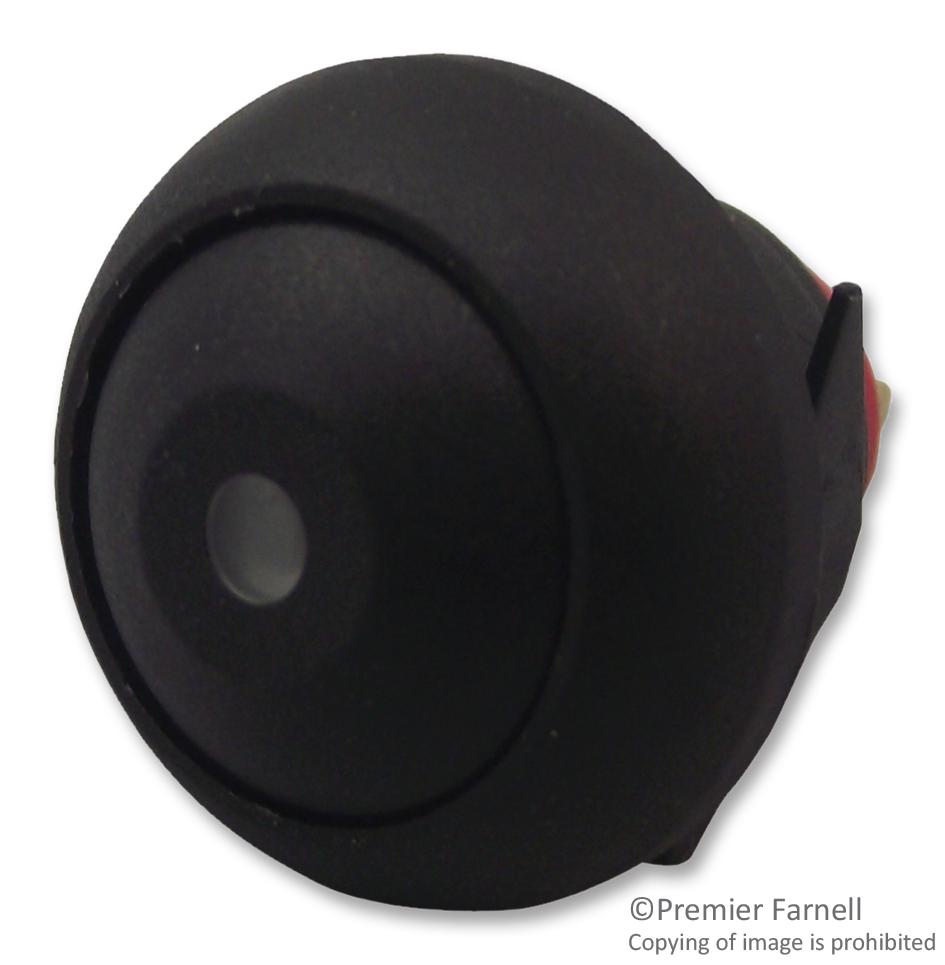

MULTICOMP PRO MCPAS6B1M1CES25L7 Industrial Illumination Switch
The MCPA Series switch offers reliable switching with various illuminated options, including round and square designs with multiple color and LED indicators. Designed for panel mounting, these switches feature high electrical durability with resistive load ratings of up to 400mA at 32V AC and 100mA at 50V DC, along with a mechanical life of 21 million cycles. Constructed with water-resistant IP67 protection, they are suitable for industrial automation, control panels, and machinery requiring durable, visually distinctive switches with easy soldering and mounting options.
MULTICOMP PRO MCPAS6B1M1CES25L7 Industrial Illumination Switch Specifications:
- Current / Voltage Rating: 400mA 32V AC, 100mA 50V DC, 125mA 125V AC max.
- Insulation Resistance: 1GO min. at 500V DC
- Dielectric Strength: 1,000V AC rms, 1,500V AC rms for metal material
- Electrical Life: 500,000 cycles
- Operating Temperature: -30°C to 85°C
- Panel Thickness: B1 series 0.8 mm to 1.8 mm, B2 series 1.5 mm to 4 mm
- Total Travel: B1 series 1.8 mm max., B2 series 4 mm max.
- Operating Force: 2N to 5N
- Mechanical Life: 21 million cycles
- Soldering Temperature: Max 350°C for 5 seconds
- Schematic Terminals: SP, Momentary, UL listed, RoHS compliant
- IP Rating: IP67 for the whole series
- LED Voltage: 2.0V to 3.6V depending on color, Peak viewing angle: 20-35 degrees
Buy the Multicomp Series MCPA Switch: MCPAS6B1M1CES25L7
Experience the reliability of the multicomp MCPA Series switches, designed for industrial environments, with IP67 water resistance, multiple LED color options, and high mechanical and electrical durability. Perfect for control panels and automation systems requiring long-lasting, visually identifiable switches. Easy to install with panel mounting options, these switches meet RoHS standards, support efficient soldering, and have a lifespan of 21 million cycles, ensuring excellent performance in demanding applications. Order online now for swift delivery and optimal performance.
Get multicomp MCPA Series MCPAS6B1M1CES25L7 today—built for high durability and reliable industrial switching.
