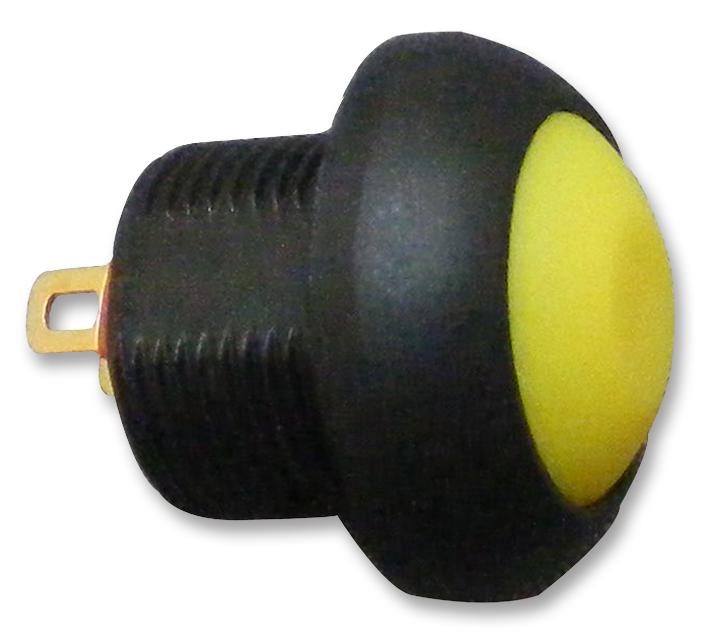

MULTICOMP PRO MCPAS6B2M1CE5 Industrial Pushbutton Switch
The MCPAS6B2M1CE5 is a high-quality single-pole, single-throw pushbutton switch designed for reliable industrial control. It features a yellow flat top cap for easy marking, solder terminal connections, and a threaded bushing for secure mounting. With gold over silver contacts, epoxy sealing, and anti-rotation bushing, it ensures durability and stable operation. Rated for a maximum initial contact resistance of 50 milliohms and operating force between 2 and 5 newtons, this switch is ideal for various manufacturing and automation applications, offering longevity of up to 1 million cycles with a pushbutton design that guarantees consistent performance.
MULTICOMP PRO MCPAS6B2M1CE5 Industrial Pushbutton Switch Specifications:
- Max. Current/Voltage Rating: 400mA 32V AC, 100mA 50V DC, 125mA 125V AC
- Max. Initial Contact Resistance: 50 milliohms
- Min. Insulation Resistance: 1GΩ at 500V DC
- Dielectric Strength: 1,000V AC rms
- Electrical Life at Full Load: 1,000,000 cycles
- Panel Thickness: 1.5mm to 4mm
- Total Travel: 1.5mm (0.059")
- Operating Force: 2N to 5N
- Contact Bounce: 10ms
- Mechanical Life: 1,000,000 cycles
- Max. Torque: 1.5Nm applied to nut
- Max. Soldering: 300°C for 3 seconds
- Switch Function: OFF-momentary
- Poles: SPST
- Mounting: Threaded bushing, snap-in
- Dimensions: Flat top diameter approximately 12.7mm (0.5")
- Material: Gold over silver contacts, epoxy seal, anti-rotation bushing
Buy the Buy Multicomp Push Button Switch Part Number MCPAS6B2M1CE5 Online
Purchase the Multicomp MCPAS6B2M1CE5 pushbutton switch online today and experience reliable, high-performance switching for automation and manufacturing. Featuring a durable yellow flat top cap for easy marking, gold over silver contacts for excellent conductivity, and a threaded bushing for secure mounting, this switch is rated for 1 million cycles and resistant to harsh industrial conditions. Its compact size and high-quality construction make it ideal for control panels, machinery, and equipment needing dependable operation over long service life. Order now to enhance your control systems with a proven industrial switch.
Get Multicomp MCPAS6B2M1CE5 today—built for durability with an anti-rotation bushing and flat marking surface for industrial control applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCPAS6B2M1CE5?
You can click on the BUY or RFQ button to purchase MCPAS6B2M1CE5 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCPAS6B2M1CE5?
You can download the MCPAS6B2M1CE5 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCPAS6B2M1CE5?
MULTICOMP PRO
