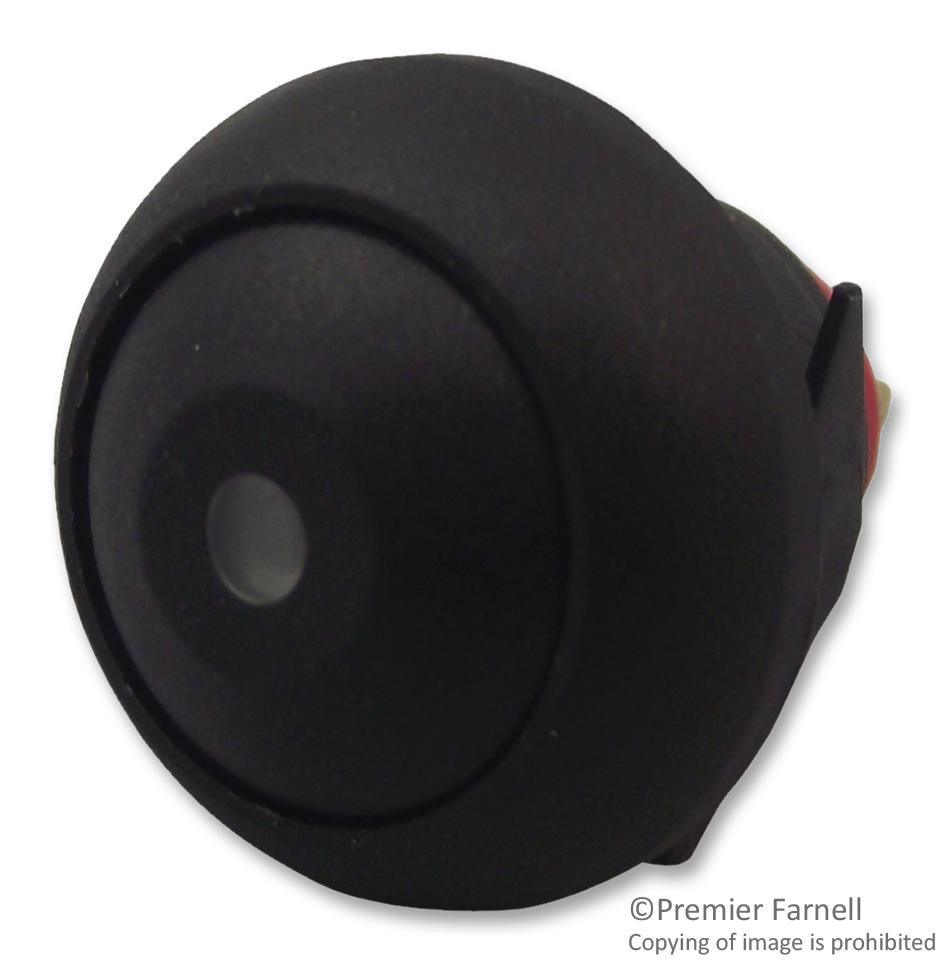

MULTICOMP PRO MCPAS6B2M1CES25L3 Waterproof Switch
The MCPAS6B2 series is a versatile waterproof switch series rated IP67, suitable for various applications requiring reliable operation in wet environments. Featuring illuminated round and square configurations, these switches support resistive loads up to 250V AC and 125V DC, with a life expectancy of 500,000 cycles. The switches operate within -30°C to 85°C, with panel thickness compatibility of 1.5 mm to 4 mm, and offer low contact resistance of 50mΩ. Easy to solder at 350°C for 5 seconds, they are ideal for industrial, control, and automation uses.
MULTICOMP PRO MCPAS6B2M1CES25L3 Waterproof Switch Specifications:
- Current / Voltage Rating: 400mA 32V AC-100mA 50V DC-125mA 125V AC maximum
- Contact Resistance: 50mΩ max.
- Insulation Resistance: 1GO min. at 500V DC
- Dielectric Strength: 1,000V AC rms; 1,500V AC rms for metal material
- Electrical Life: 500,000 cycles
- Operating Temperature: -30°C to 85°C
- Panel Thickness: 1.5 mm (.059) min. - 4 mm (.157) max.
- Total Travel: 1.5 mm (.059)
- Operating Force: 2N to 5N
- Mechanical Life: 21 million cycles
- Soldering: Max 350°C for 5 seconds
- Soldering Process: Manual and wave soldering recommended at 260±5°C
- Protection Rating: IP67 for entire series
- Switch Types: Round illuminated, square illuminated, with various LED colors
Buy the Multicomp Series MCPA Waterproof Switch: MCPAS6B2M1CES25L3
Order the multicomp waterproof switch MCPAS6B2M1CES25L3 online today for dependable, high-quality switching solutions designed for harsh environments. With an IP67 rating, these illuminated switches are perfect for industrial automation, control panels, and outdoor applications. They support resistive loads up to 250V AC and 125V DC, ensuring durability for millions of cycles under demanding conditions. Easy to solder and install, they offer excellent insulation resistance and long mechanical life. Enhance your equipment with these reliable, surface-mount switches for consistent performance in wet and humid settings.
Buy multicomp waterproof illuminated switch MCPAS6B2M1CES25L3 now and experience unmatched reliability and rugged performance for industrial applications.
