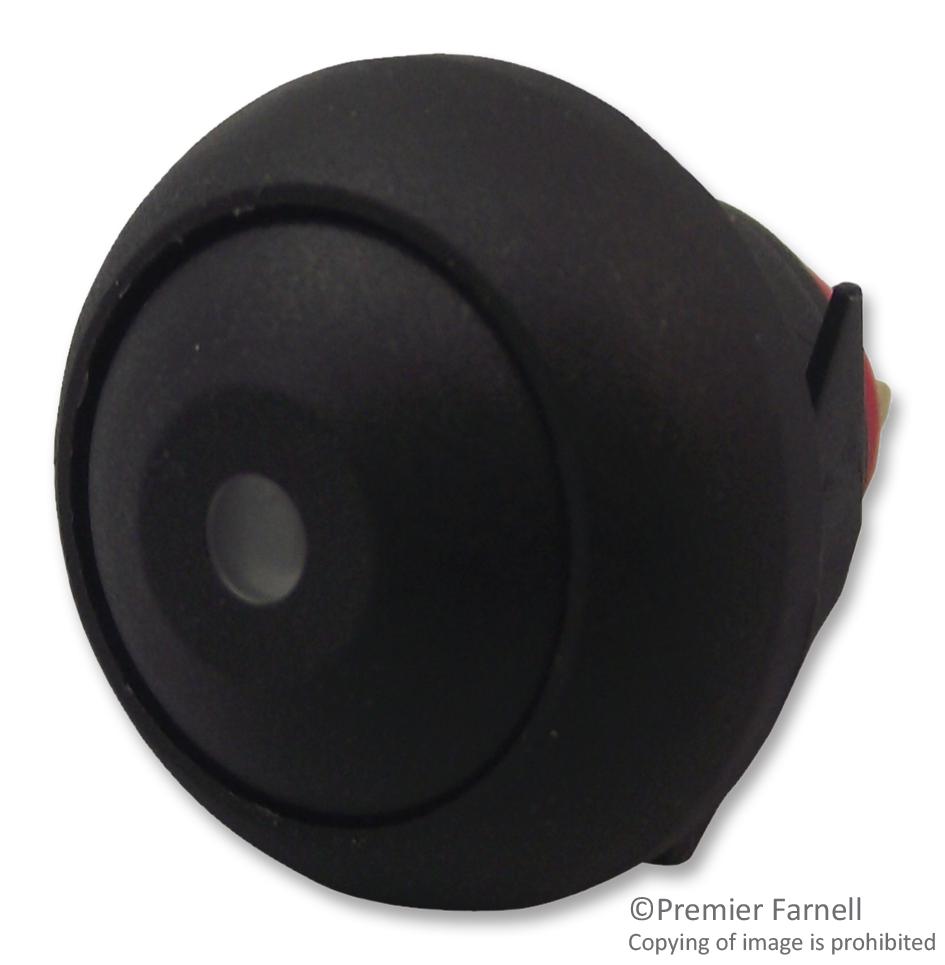

MULTICOMP-PRO MCPAS6B2M1CES25L5 Industrial Switch
The MCPA series switches feature a compact panel-mount design with various configurations, including round and square shapes, illuminated options, and multiple colors. These switches support resistive loads up to 400mA at 32V AC and minimize contact resistance to 50mΩ. They are designed for reliable switching with high electrical life, operating from -30°C to 85°C, and feature IP67 ratings for water immersion protection. Suitable for automation and control applications, these switches are easy to solder and mount securely for industrial environments.
MULTICOMP-PRO MCPAS6B2M1CES25L5 Industrial Switch Specifications:
- Current / Voltage Rating: 400mA 32V AC-100mA 50V DC-125mA 125V AC max.
- Initial Contact Resistance: 50mΩ max.
- Insulation Resistance: 1GO min. at 500V DC
- Dielectric Strength: 1,000V AC rms, 1,500V AC rms for metal material
- Electrical Life: 500,000 cycles
- Operating Temperature: -30°C to 85°C
- Panel Thickness: B1 series 0.8 mm (.031), B2 series 1.5 mm (.059)
- Total Travel: B1 series 1.8 mm (.071), B2 series 4 mm (.157)
- Operating Force: 2N to 5N
- Contact Bounce: 10ms
- Mechanical Life: 21,000,000 cycles
- Soldering Temperature: Max 350°C for 5 sec
- IP Rating: IP67 for whole series, protected against immersion up to 1 meter for 30 minutes
- Material: Reinforced plastic housing, metal mounting components
- Switch Function: SP (Single Pole), Momentary or Alternate
- Mounting Type: Panel mount, with hardware options included
Buy the Multicomp Series Switch: MCPAS6-B2 Review and Specifications
Order the multicomp MCPAS6-B2 switch online now to ensure reliable operation in industrial environments. Designed for durability, easy installation, and high electrical performance, this switch supports multiple configurations including illuminated options. Its IP67 rating guarantees water and dust resistance, making it ideal for control panels, automation systems, and machinery. With a long electrical life of over 21 million cycles, secure your equipment's switching needs by purchasing this high-quality switch online today—experience the best in industrial control components.
Get multicomp MCPAS6-B2 switch today—built for durability and precise switching performance in industrial applications.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCPAS6B2M1CES25L5?
You can click on the BUY or RFQ button to purchase MCPAS6B2M1CES25L5 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCPAS6B2M1CES25L5?
You can download the MCPAS6B2M1CES25L5 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCPAS6B2M1CES25L5?
MULTICOMP-PRO
