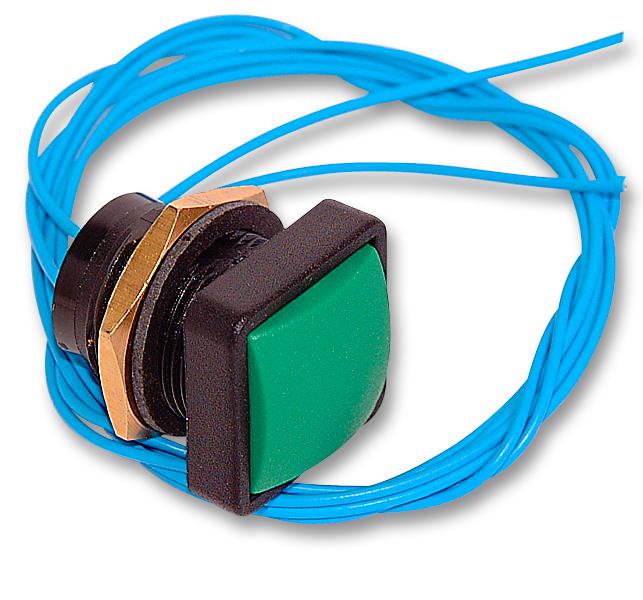

MULTICOMP-PRO MCPAS6D1M1CES65 Sub-Miniature Pushbutton Switch
The MCPAS6D1-M1CES series features compact, panel-mountable sub-miniature pushbutton switches designed for industrial and electronic control applications. These switches offer reliable operation with a wide operating temperature range of -30°C to +85°C, high electrical durability at 71 million cycles, and an IP67 rating for water immersion resistance. Available in various configurations, including square and round with illumination options. They support soldering at 350°C for 5 seconds and have a maximum operating force of 5N, making them suitable for demanding environments requiring precise and durable switching solutions.
MULTICOMP-PRO MCPAS6D1M1CES65 Sub-Miniature Pushbutton Switch Specifications:
- Max. Current/Voltage Rating With Resistive Load: 400mA 32V AC, 100mA 50V DC, 125mA 125V AC, 500mA 48V AC, 200mA 50V DC, 250V AC
- Initial Contact Resistance: 50mΩ Max.
- Insulation Resistance: 1GΩ Min. at 500V DC
- Operating Temperature: -30°C to +85°C
- Dielectric Strength: 1,000 V AC rms; 1,500 V AC rms. for metal material
- Electrical Life at Full Load: 71,000,000 cycles
- Panel Thickness: 0.8 mm (min) to 4 mm (max)
- Total Travel: 1.5 mm
- Operating Force: 2N to 5N
- Contact Bounce: 10 ms
- Soldering Temperature: Max 350°C for 5 seconds
- Water Resistance: IP67, protected against immersion up to 1 meter for 30 minutes
- Mechanical Torque: Max 0.5 Nm to 1.5 Nm depending on material
- Switch Function: SPST, momentary, normally open
- Dimensions: Vary by series; typical panel mounting hole 12.7mm (0.5 inch)
- LED Options: Various colours including Red, Green, Yellow, Blue with typical peak Wavelengths between 22-34 nm
Buy the multicomp U+2013 Reliable Pushbutton Switches for Industrial Applications
Enhance your electronic and industrial control systems with the reliable, durable, and water-resistant multicomp sub-miniature pushbutton switches. Featuring high cycle durability and IP67 water immersion resistance, these switches are perfect for rugged environments. Their compact size and LED illumination options provide easy integration into various control panels. Supported by a maximum operating force of 5N and thermal soldering compatibility at 350°C for 5 seconds, they ensure dependable performance for demanding applications. Order online today for fast delivery and quality assurance.
Order your multicomp Series MCPAS6D1-M1CES pushbutton switch today and give your projects the dependable quality they deserve, suitable for demanding control systems with IP67 sealing and LED illumination options.
