MULTICOMP-PRO MCPAS6D1M1CES75 Illuminated Square Switch
The MCPAS6D1M1CES75 is a high-quality illuminated square switch designed for industrial and electronic applications. It features a robust construction with IP67 ingress protection, ensuring durability against water immersion up to 1 meter for 30 minutes. The switch includes a water-clear lens and operates with a voltage of 20mA at different LED colors, providing clear visual indication. Suitable for panel mounting, it supports manual soldering or vapor-phase soldering processes. This switch is ideal for controlling circuits in demanding environments, combining reliability, excellent electrical performance, and easy installation.
MULTICOMP-PRO MCPAS6D1M1CES75 Illuminated Square Switch Specifications:
- Current / Voltage Rating: 400mA 32V AC-100mA 50V DC-125mA 125V AC max., 500mA 48V AC-200mA 50V DC-200mA 250V AC for metal material
- Contact Resistance: 50mQ max.
- Insulation Resistance: 1GO min. at 500V DC
- Dielectric Strength: 1,000V AC rms, 1,500V AC rms for metal material
- Electrical Life: 500,000 cycles
- Operating Temperature: -30°C to 85°C
- Panel Thickness: B1 series 0.8 mm to 1.8 mm, B2 series 1.5 mm to 4 mm
- Total Travel: 1.5 mm (.059)
- Operating Force: 2N to 5N
- Contact Bounce: 10ms
- Mechanical Life: 21,000,000 cycles
- Torque: 0.5 Nm max. (nut), 1.5 Nm max. (metal material)
- Soldering Temperature: 350°C max. for 5 seconds
- Ingress Protection: IP67 protective against immersion up to 1 meter for 30 minutes
- Soldering Process: Manual (350°C, 5 sec.), Wave (260 ±5°C, 5 sec.), Vapor phase
- LED Voltage (at 20mA): White 3.2V, Super Red 1.7V, Super Yellow 2.1V, Super Green 2.0V, Super Blue 3.2V
- Wave-angle: Ranges from 460 to 660 degrees depending on LED color and type

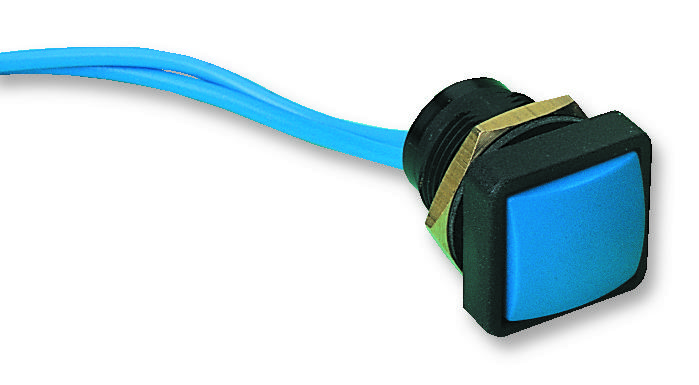

Buy the multicomp Series MCPAS6D1M1CES75 Switch: MCPAS6D1M1CES75
Purchase the multicomp MCPAS6D1M1CES75 illuminated square switch today to enhance your control panels. This IP67-rated switch ensures water resistance and reliable operation even in harsh environments. Featuring easy panel mounting and support for manual or vapor-phase soldering, it offers long-lasting durability and consistent electrical performance. With vibrant LED indicators, it provides clear visual cues for operational status, making it ideal for industrial, automation, and electronic applications. Buy online now for fast delivery and quality assurance.
Get multicomp MCPAS6D1M1CES75 switch today—built for durability, reliable LED illumination, and easy panel mounting in industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCPAS6D1M1CES75?
You can click on the BUY or RFQ button to purchase MCPAS6D1M1CES75 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCPAS6D1M1CES75?
You can download the MCPAS6D1M1CES75 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCPAS6D1M1CES75?
MULTICOMP-PRO
