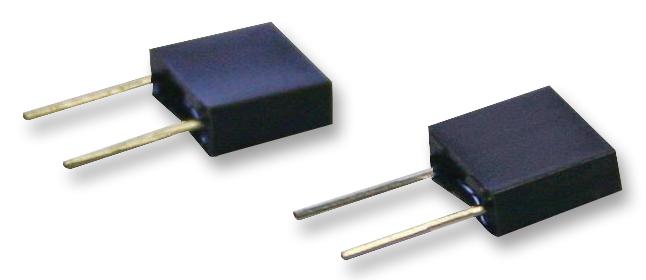

MULTICOMP PRO MCPBSFC1J472KA45 Polyester Film Capacitor
This 5mm pitch metallised polyester capacitor features a compact design with epoxy resin encapsulation in flame-retardant plastic cases, equipped with stand-off feet for easy mounting. With a capacitance of 0.047uF and a working voltage of 63V, it is suitable for various industrial applications requiring stable performance. It offers a tolerance of 10%, operates over a temperature range of -55°C to +85°C, with voltage derating up to 105°C, and has an insulation resistance of 215,000 MQ. Its low dissipation factor of 2.1% at 1 kHz makes it reliable in filtering and signal coupling tasks.
MULTICOMP PRO MCPBSFC1J472KA45 Polyester Film Capacitor Specifications:
- Capacitance: 0.047uF
- Voltage Rating: 63V DC / 40V AC
- Tolerance: 10%
- Operating Temperature Range: -55°C to +85°C
- Max. Temperature with Voltage Derating: 105°C
- Insulation Resistance: 215,000 MQ (25,000 seconds at 20.33 pF)
- Dissipation Factor: 2.1% at 1 kHz
- Body Material: Flame retardant epoxy resin encapsulated plastic case
- Dimension (Max Width): 7.2mm
- Dimension (Max Height): 6.5mm
- Dimension (Max Depth): 25mm
- Pitch: 5mm
- Body Color: Grey
Buy the Buy Multicomp 5mm Polyester Film Capacitor Part Number MCPBSFC1J472KA45 Online
Purchase the Multicomp polyester film capacitor online today to benefit from dependable performance in electronic filtering, signal coupling, and noise suppression applications. This 5mm pitch capacitor features epoxy resin encapsulation in flame-retardant plastic cases with stand-off feet, making installation straightforward and secure. With a capacitance of 0.047uF and voltage rating of 63V, it operates reliably in temperature ranges from -55°C to +85°C, with a derated maximum temperature of 105°C. Its 10% tolerance ensures consistent performance for demanding industrial circuits.
Get Multicomp 5mm Polyester Film Capacitor MCPBSFC1J472KA45 today—designed for reliable filtering and signal coupling in industrial electronics.
