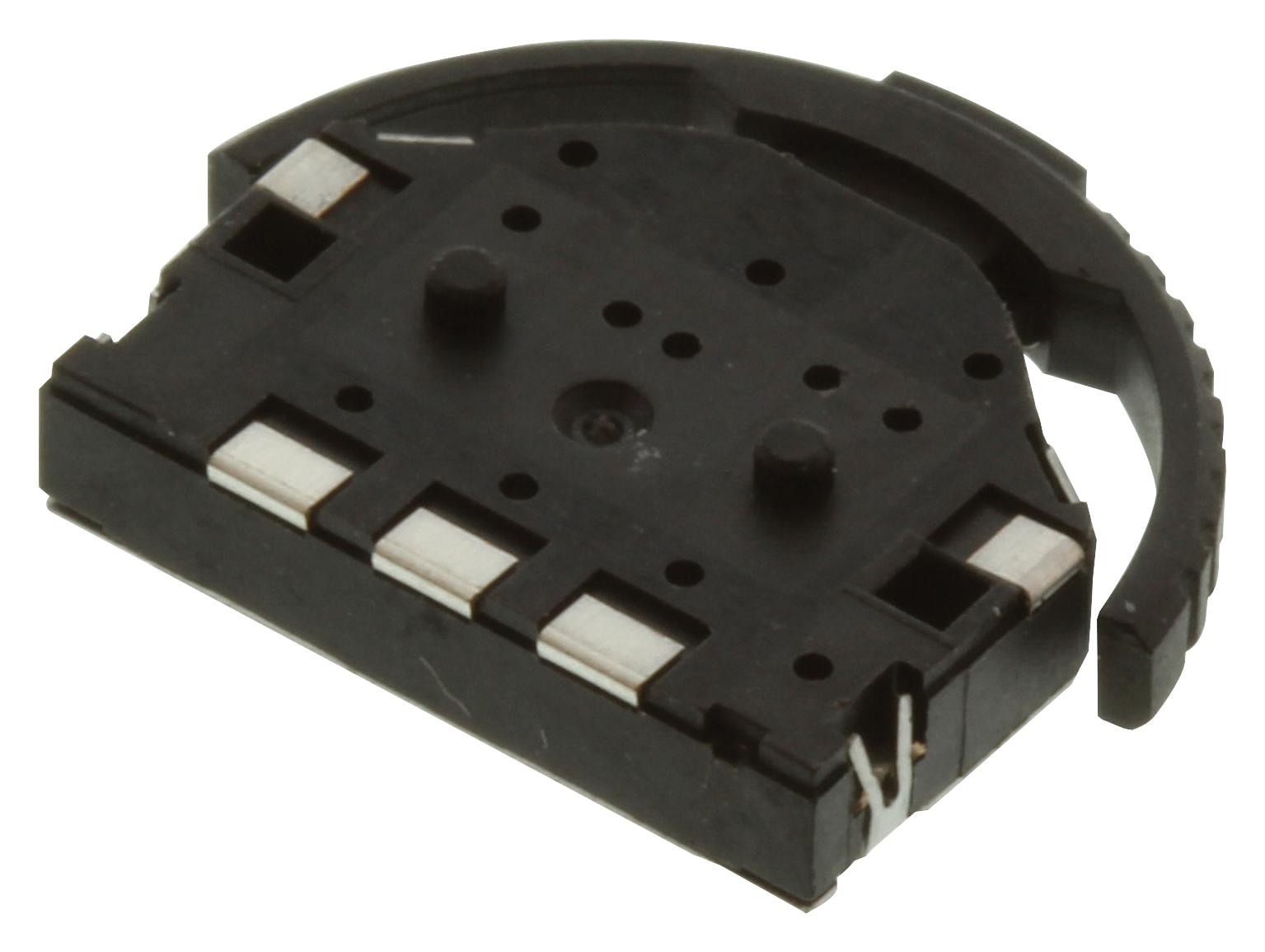

MULTICOMP PRO MCPL3ACV Navigation Switch
The MCPL3-AC-V from Multicomp Pro is a three-position, surface-mount navigation switch with a single pole single throw (SPST) configuration. It features an operating force of 200gf for the center push and 70gf for the lever, making it suitable for industrial, automation, and power management applications. The switch operates within a temperature range of -10°C to 60°C, with an electrical rating of 10mA at 5V DC. It is constructed with stainless steel and high-temperature thermoplastic materials, ensuring durability and reliability in various environments. The compact dimensions and robust design make it ideal for control panels and electronic devices requiring precision switching.
MULTICOMP PRO MCPL3ACV Navigation Switch Specifications:
- Operating Force: 200gf (center push), 70gf (lever CW/CCW)
- Operating Temperature Range: -10°C to +60°C
- Storage Temperature Range: -30°C to +80°C
- Mechanical Life: 100,000 cycles
- Electrical Life: 100,000 cycles
- Rating: 10mA, 5V DC
- Maximum Contact Resistance: 10mΩ
- Minimum Insulation Resistance: 100MΩ at 100V DC
- Dielectric Strength: > 100V AC for 1 minute
- Circuit: Single pole single throw
- Material (Cover): Nylon high-temperature thermoplastic
- Material (Base): Nylon high-temperature thermoplastic
- Colour (Cover): Black
- Colour (Stem): Black
- Contact Material: Phosphor bronze with silver cladding
- Terminal Material: Phosphor bronze with silver cladding
- Spring Material: Stainless steel
- Soldering Process: Use a 30W soldering iron, maximum 350°C for 5 seconds
Buy the Buy Multicomp Pro Navigation Switch Part Number MCPL3ACV Online
Purchase the Multicomp Pro MCPL3-AC-V navigation switch online today. This durable, surface-mount SPST switch features robust materials, high reliability, and precise operation perfect for industrial, automation, or control panel applications. With a contact rating of 10mA at 5V DC, operating temperatures from -10°C to 60°C, and a mechanical lifespan of 100,000 cycles, it ensures long-term performance. Easy to solder and assembled with high-quality components, this switch offers excellent value and dependable switching for your electronic and control systems.
Order your Multicomp SeriesMCPL3ACV navigation switch today and ensure reliable control in your industrial or automation projects.
