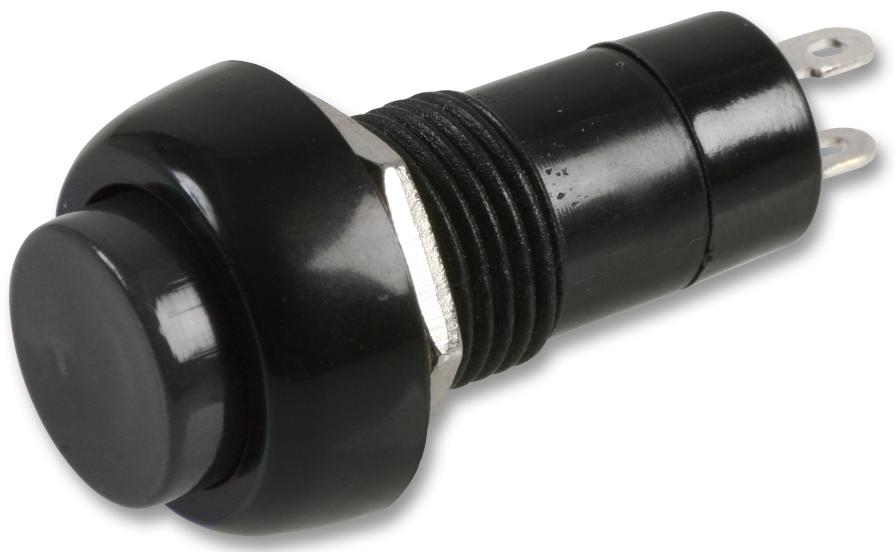

MULTICOMP PRO MCPS25A2 Pushbutton Switch
This non-illuminated pushbutton switch features a round, compact design with a SPST contact configuration, ideal for industrial and control panel applications. It has quick connect tabs for easy installation, rated at 1A and 125V or 250V AC, making it suitable for light to moderate electrical switching tasks. The device offers a contact resistance of max 30mΩ, insulation resistance of at least 100MQ at 500VDC, and dielectric strength of 1000V AC for one minute. Designed with a copper alloy terminal, silver or gold plating, it withstands up to 10,000 mechanical cycles, ensuring durability and reliable performance in demanding environments.
MULTICOMP PRO MCPS25A2 Pushbutton Switch Specifications:
- Contact Configuration: SPST
- Actuator: Non-illuminated, Round
- Terminal: Quick Connect Tab
- Rating: 1A, 125V AC/250V AC
- Contact Resistance: 30mΩ Max.
- Insulation Resistance: 100MQ Min. at 500VDC
- Dielectric Strength: 1000V AC/1 minute
- Electrical Life: 5,000 Cycles Min.
- Mechanical Life: 10,000 Cycles Min.
- Terminal Material: Copper Alloy, Silver or Gold Plated
- Push Force: > 0.3kg
- Soldering: 240°C for 3 seconds
Buy the MultiComp Pro MCPS25A2 – Reliable Pushbutton Switch for Industrial Applications
Enhance your control systems with the durable and reliable pushbutton switch available online. This round, non-illuminated switch features quick connect tabs, rated up to 1A and suitable for AC voltages. Built with high-quality materials, it withstands extensive use with a mechanical life of over 10,000 cycles and excellent electrical performance. Perfect for industrial machinery, control panels, and automation projects, ordering online ensures fast delivery and trusted quality for your essential electrical components.
Order your MultiComp Pro Series MCPS25A2 pushbutton switch today and upgrade your control panels with a durable, high-quality switch designed for demanding environments.
