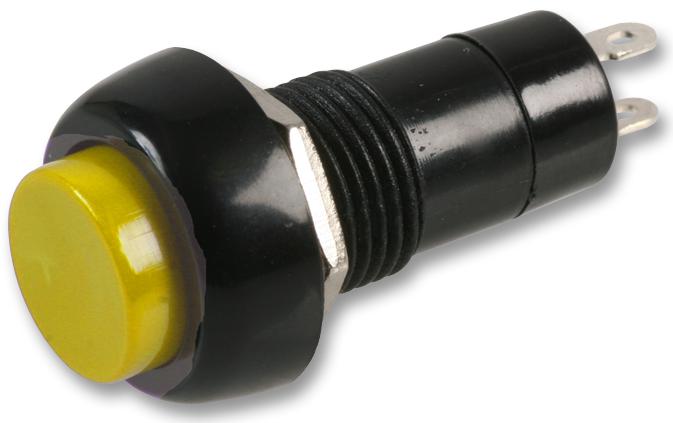

MULTICOMP-PRO MCPS25B5 Pushbutton Switch
This non-illuminated round pushbutton switch features a SPST contact configuration, quick connect terminals, and a durable copper alloy construction with silver or gold plating. It is rated at 1A, 125V AC/250V AC, with an insulation resistance of at least 100MQ and dielectric strength of 1000V AC for one minute. Designed for panel mounting, it offers an electrical life of a minimum of 5,000 cycles and a mechanical life of at least 10,000 cycles. Suitable for industrial control applications, it provides reliable actuation with a push force greater than 0.3kg and soldering temperature of 240°C for 3 seconds.
MULTICOMP-PRO MCPS25B5 Pushbutton Switch Specifications:
- Contact Configuration: SPST
- Actuator: Non-illuminated, Round
- Terminal: Quick Connect Tab
- Rating: 1A, 125V AC/250V AC
- Contact Resistance: 30mΩ Max
- Insulation Resistance: 100MQ Min at 500VDC
- Dielectric Strength: 1000V AC for 1 minute
- Electrical Life: 5,000 Cycles Min
- Mechanical Life: 10,000 Cycles Min
- Terminal Material: Copper Alloy, Silver or Gold Plated
- Push Force: > 0.3kg
- Soldering Temperature: 240°C for 3 seconds
- Dimensions: Millimeters, panel-mounted with quick connect terminals
Buy the Multicomp Pro MCPS25B5 – Reliable Non-Illuminated Pushbutton Switch for Industrial Applications
Purchase the non-illuminated round pushbutton switch online today to ensure seamless integration into your industrial control systems. With a robust SPST contact configuration, quick connect terminals, and durable copper alloy construction with silver or gold plating, this switch offers reliable performance with a rated current of 1A at 125V or 250V AC. Its high insulation resistance, dielectric strength, and long mechanical and electrical life make it ideal for demanding applications. Easy to install, with soldering temperature of 240°C, ensuring durability and efficiency in your automation projects.
Buy Multicomp Pro MCPS25B5 now and experience unmatched reliability and robust performance for industrial control panels.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCPS25B5?
You can click on the BUY or RFQ button to purchase MCPS25B5 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCPS25B5?
You can download the MCPS25B5 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCPS25B5?
MULTICOMP-PRO
