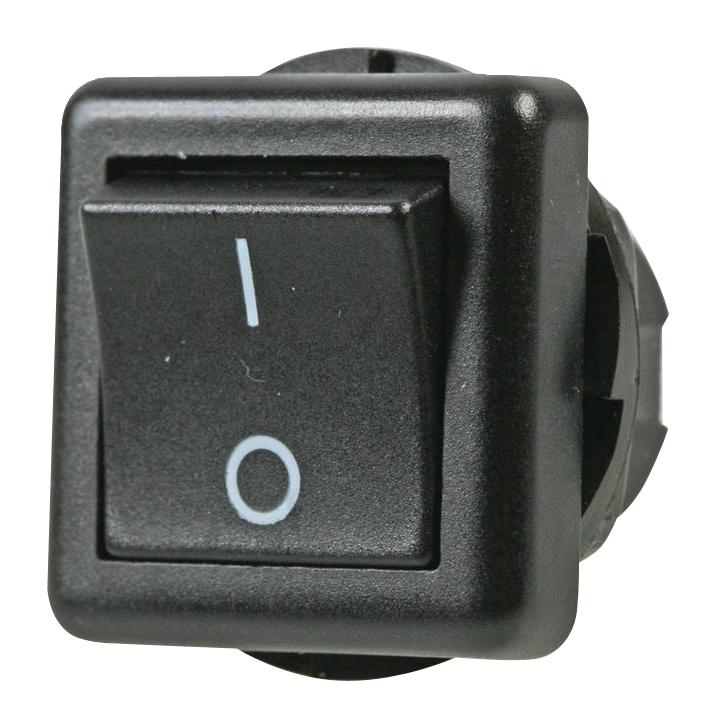

MULTICOMP-PRO MCR13136A05 Non-Illuminated Rocker Switch
This non-illuminated rocker switch features a concave actuator designed for panel mounting, making it suitable for various switching applications. It operates as a 2-pole, SPST (single-pole, single-throw) On-Off switch with a maximum rating of 10A at 125V AC and 6A at 250V AC. The switch utilizes copper alloy terminals soldered for secure connections, with a durable nylon 6.6 actuator and a black PF frame. It provides excellent insulation resistance and dielectric strength, ensuring reliable performance across diverse electronic and industrial device setups.
MULTICOMP-PRO MCR13136A05 Non-Illuminated Rocker Switch Specifications:
- Switch Function: 2P, SPST, On-Off
- Switch Mounting: Panel
- Switch Terminal: Solder Lug
- Actuator Type: Concave, Vertical Marking
- Ratings: 10A/125V, 6A/250V AC
- Contact Resistance: 50mΩ Max
- Insulation Resistance: 100MQ Min at 500VDC
- Dielectric Strength: 1500V AC for 1 minute
- Frame Material: PF, Black
- Actuator Material: Nylon 6.6, Black
- Terminals: Copper Alloy
- Mounting Hole Diameter: 14.0 mm ± 0.3 mm
- Dimensions: 140.2 mm with tolerances +0.3 mm
Buy the Buy Multicomp Non-Illuminated Rocker Switch Part Number MCR13-136A-05 Online
Purchase the Multicomp Non-Illuminated Rocker Switch today for reliable panel mounting switching solutions. Featuring a durable nylon actuator and copper alloy terminals, this switch handles up to 10A at 125V AC and 6A at 250V AC. Its concave actuator provides ergonomic operation, and the robust construction ensures long-lasting performance. Suitable for industrial, control, and electronic applications, this switch offers excellent insulation resistance and dielectric strength, making it the ideal choice for professional, high-quality switching requirements.
Get Multicomp Non-Illuminated Rocker Switch MCR13-136A-05 today—designed for durable, reliable switching in industrial and electronic devices.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCR13136A05?
You can click on the BUY or RFQ button to purchase MCR13136A05 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCR13136A05?
You can download the MCR13136A05 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCR13136A05?
MULTICOMP-PRO
