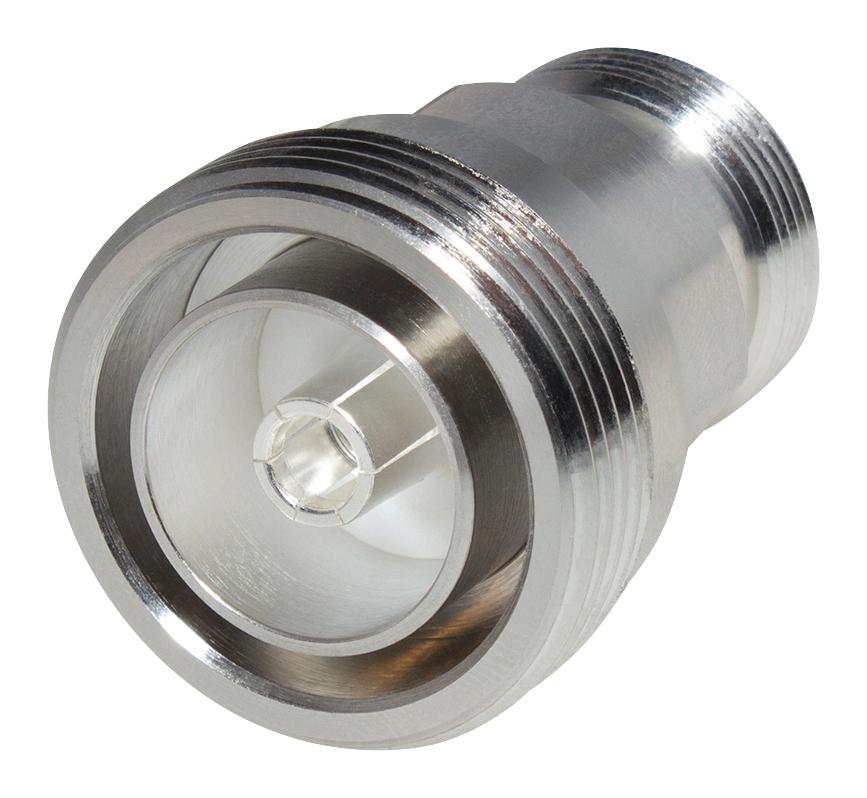

MULTICOMP PRO MCRF0015 RF Adapter
This high-quality adapter converts 4.1-9.5 female connectors to 7/16 female connectors, suitable for RF and communication applications. Made from brass with a white bronze finish, it features PTFE insulators and silver-plated phos bronze contacts for excellent conductivity and durability. It operates across a temperature range of -55°C to +85°C, supports up to 7.5 GHz frequency, and has a maximum VSWR of <1.07:1 below 2.5 GHz and <1.15:1 up to 7.5 GHz. With a maximum working voltage of 1200 Vrms, it withstands 500 mating cycles for reliable performance.
MULTICOMP PRO MCRF0015 RF Adapter Specifications:
- Impedance: 50Ω
- Frequency Range: 0 to 7.5 GHz
- Max. PIM: -160dBe at 1900 MHz
- VSWR: <1.07:1 below 2.5 GHz, <1.15:1 up to 7.5 GHz
- Insertion Loss: 0.05 dB at 3 GHz
- Insulation Resistance: 5,000 MΩ
- Working Voltage: 1,200 Vrms max
- Mating Cycles: 500
- Temperature Range: -55°C to +85°C
- Material: Brass body, PTFE insulator, Silver-plated phos bronze contact
- Finish: White bronze
- Dimensions: See attached diagram with inches and millimeters
Buy the Multicomp Series RF Adapter: MCRF0015
Buy the Multicomp RF Adapter MCRF0015 online today for reliable connectivity in radio frequency systems. Designed with high-quality brass and silver-plated contacts, this adapter ensures excellent signal transfer across a broad frequency range up to 7.5 GHz. Its durable construction supports 500 mating cycles, making it ideal for demanding applications. Operating from -55°C to +85°C and rated for 1200 Vrms, it provides a secure, RoHS-compliant connection. Order now to enhance your RF setup with this dependable adapter.
Get Multicomp MCRF0015 today—built for high-performance RF connections and long-lasting durability.
