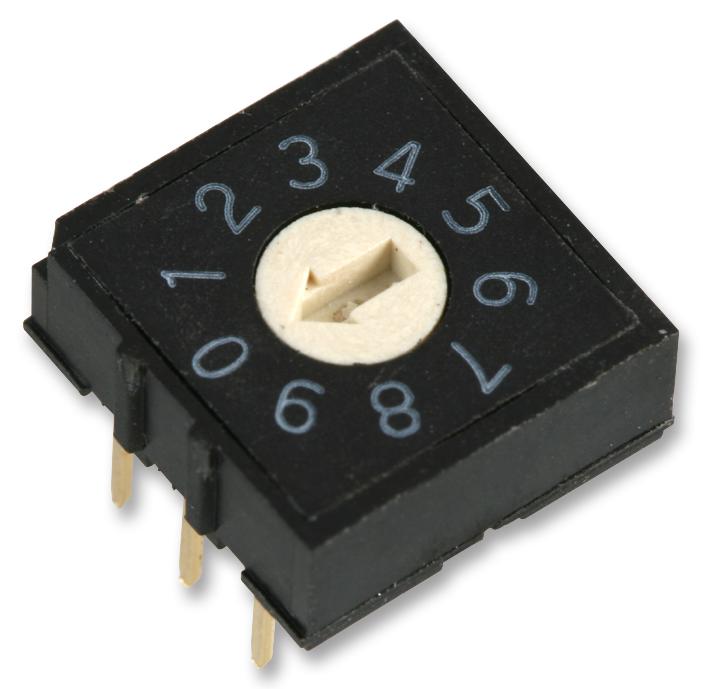

MULTICOMP PRO MCRH2AF10R Rotary Switch
The MCRH2AF-10R is a 10-position dual in-line rotary switch designed for industrial use, featuring a through-hole terminal configuration and a recessed actuator made from durable UL94V-0 thermoplastic. It features gold-plated contacts over nickel for reliable electrical connections, along with a sturdy nylon thermoplastic base and cover, ensuring durability in demanding environments. With a contact rating of 25mA at 24VDC, an operating temperature from -25°C to +80°C, and an operating life of 20,000 steps, this switch offers precise operation and long service life for automation and control systems.
MULTICOMP PRO MCRH2AF10R Rotary Switch Specifications:
- Position: 10-position
- Type: Dual in-line rotary switch
- Terminal Style: Through-hole (THT)
- Actuator: Recessed, made from UL94V-0 LCP thermoplastic
- Base & Cover: Black UL 94V-0 nylon thermoplastic
- Contacts: Gold-plated over nickel copper alloy
- Terminals: Gold-plated brass
- Contact Rating: 25mA, 24VDC
- Electrical Resistance: 100mΩ Max
- Insulation Resistance: > 100MO Min at 250V DC
- Dielectric Strength: 250V AC for 1 minute
- Operating Force: 400gf*cm max
- Operating Temperature: -25°C to +80°C
- Storage Temperature: -40°C to +85°C
- Operating Life: 20,000 steps
Buy the Buy Multicomp Pro Rotary Coded Switch Part Number MCRH2AF-10R Online
Purchase the high-quality rotary switch online to ensure reliable performance in industrial applications. Ideal for control systems, this switch offers 10 positions, robust construction, and gold-plated contacts for long-lasting connections. Easy to install with through-hole terminals, it guarantees precise operation and durability in demanding environments. Whether for automation, machinery, or panel controls, buying online provides quick access to this essential component, ensuring your projects maintain optimal functionality with trusted quality and performance.
Buy Multicomp Pro MCRH2AF-10R now and experience durable, reliable rotary switching for industrial automation and control projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCRH2AF10R?
You can click on the BUY or RFQ button to purchase MCRH2AF10R from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCRH2AF10R?
You can download the MCRH2AF10R datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCRH2AF10R?
MULTICOMP PRO
