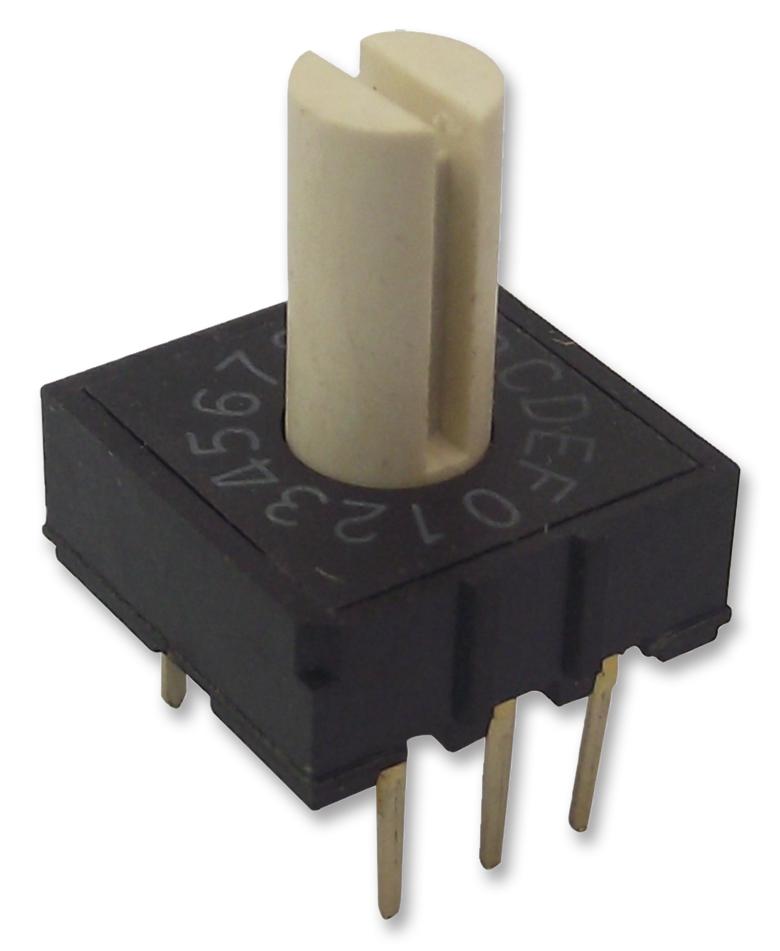

MULTICOMP-PRO MCRH4HAF16RVB Rotary Switch
The rotary switch series offers high-quality, rohs compliant miniature tact switches designed for precise control applications. Constructed with UL94V-0 high-temperature thermoplastic, these switches feature gold-plated contacts on alloy copper, providing reliable electrical performance with a switching rating of 24V DC, 25mA. They support up to 20,000 mechanical and electrical cycles, with a maximum operating temperature of +80°C. Suitable for through-hole, SMD, and right-angle mounting configurations, these durable switches are ideal for industrial, automation, and electronic control systems requiring robust and consistent switching performance.
MULTICOMP-PRO MCRH4HAF16RVB Rotary Switch Specifications:
- Mechanical Base & Cover: UL94V-0 High-temp Thermoplastic
- Mechanical Life: 20,000 steps
- Operating Force: 200gf-cm max.
- Operating Temperature: -25°C to +80°C
- Contact Material: Alloy Copper with Gold Plated over Nickel
- Electrical Life: 20,000 cycles
- Switching Rating: 24V DC, 25mA
- Contact Resistance: Initial 100mΩ, Final 200mΩ
- Insulation Resistance: 100MΩ min. at 250V DC
- Voltage Proof: 250V AC for 1 min.
- Dimensions: Varies by model, typical size approx 10x10mm footprint
- Environmental: RoHS compliant
- Temperature Range: -25°C to +80°C
- Mounting: Through-hole, SMD, and Right Angle
- Color: Black or White
- Certifications: RoHS
Buy the Multicomp Series Rotary Switch: MCRH4HAF16RVB
Purchase the reliable and durable rotary switch MCRH4HAF16RVB online today. Designed with high-temperature thermoplastic and gold-plated contacts, it offers excellent electrical performance, supporting up to 20,000 cycles. Suitable for various mounting types including through-hole and SMD, this switch provides precise control in industrial and electronic applications. With RoHS compliance, it ensures environmentally safe operation, and its compact size fits seamlessly into control panels and automation systems, making it the ideal choice for demanding environments.
Order your Multicomp Series rotary switch MCRH4HAF16RVB today and ensure reliable, durable control for your electronic projects and industrial automation needs.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCRH4HAF16RVB?
You can click on the BUY or RFQ button to purchase MCRH4HAF16RVB from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCRH4HAF16RVB?
You can download the MCRH4HAF16RVB datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCRH4HAF16RVB?
MULTICOMP-PRO
