MULTICOMP PRO MCRV4AF16RVB Rotary Switch
The rotary switch series offers durable, high-temperature thermoplastic components with gold-plated contacts, rated for 20,000 switching cycles and RoHS compliant. Designed for precise control applications, these switches feature varying pole and position configurations, suitable for PCB mounting or through-hole installation. They operate within -25°C to +80°C temperatures, with high insulation resistance and rated voltage of 50V DC. The series includes multiple models with different terminal arrangements, offering reliable electrical performance for industrial and automation systems. Their rugged construction ensures long-lasting operation in demanding environments.
MULTICOMP PRO MCRV4AF16RVB Rotary Switch Specifications:
- Mechanical Life: 20,000 cycles
- Operating Temperature: -25°C to +80°C
- Contact Resistance: 100mΩ initial, 200mΩ final
- Insulation Resistance: 100MΩ min. at 250V DC
- Voltage Rating: 50V DC
- Housing Material: UL94V-0 High-temp Thermoplastic
- Color: Black, White
- Actuator Material: UL94V-0 High-temp Thermoplastic
- Environmental Compliance: RoHS
- Soldering Process: Hand, Wave at 260°C, Reflow max 260°C
- Mechanical Dimensions: Vary by model, typical sizes in datasheet
- Contact Material: Alloy Copper with Gold Plating over Nickel
- Electrical Life: 20,000 cycles
- Max Operating Voltage: 50V DC

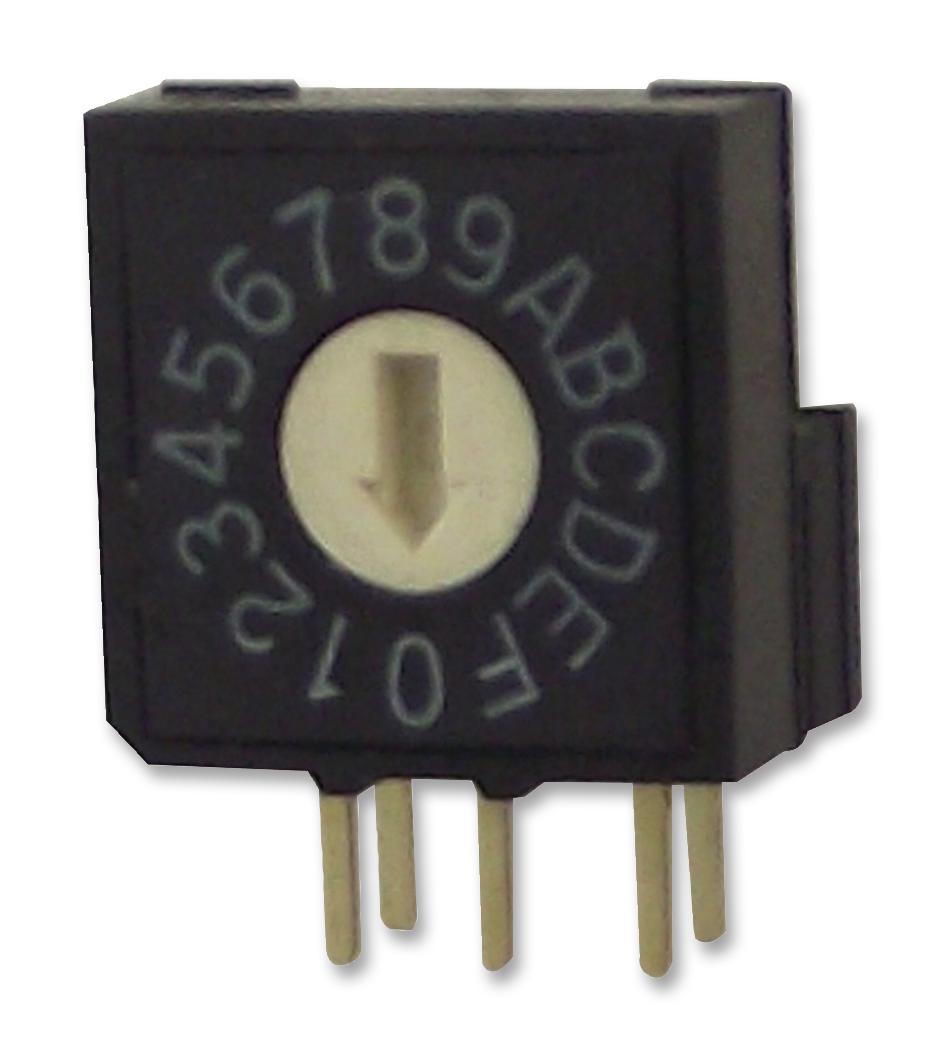

Buy the Buy MultiComp Rotary Switch Part Number MCRV4AF16RVB Online
Enhance your control system with the reliable MultiComp rotary switch. Designed for industrial environments, it offers long-lasting durability, RoHS compliance, and a range of configurations suitable for PCB and through-hole mounting. This switch features gold-plated contacts for superior electrical performance and rated for up to 20,000 cycles. Its rugged thermoplastic housing withstands high temperatures and environmental stress, making it ideal for demanding applications. Order online today for fast delivery and ensure stable, precise control in your equipment.
Get MultiComp rotary switch MCRV4AF16RVB today—built for precision and long-lasting durability in industrial control systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCRV4AF16RVB?
You can click on the BUY or RFQ button to purchase MCRV4AF16RVB from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCRV4AF16RVB?
You can download the MCRV4AF16RVB datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCRV4AF16RVB?
MULTICOMP PRO
