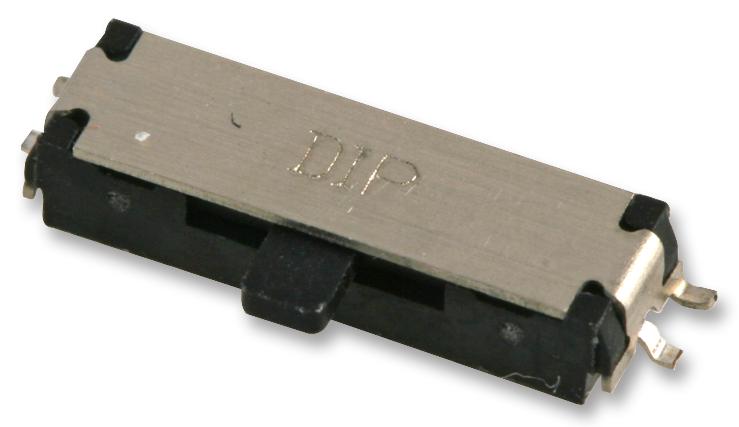

MULTICOMP-PRO MCS2SA15F Recoil Slide Switch
This high-quality slide switch from Multicomp Pro features a double side recoil mechanism, designed for horizontal orientation with a raised actuation type and side actuator. Its compact external width of 10.4mm makes it suitable for precise electronic applications. It offers 1 pole with either 2 or 3 positions, featuring a robust construction with nickel silver cover, alloy copper contact disc with gold cladding, and phosphor bronze terminals with silver cladding. Its operating temperature ranges from -30°C to +80°C, with a mechanical life of 50,000 cycles, ensuring durability and reliable switching performance in demanding environments.
MULTICOMP-PRO MCS2SA15F Recoil Slide Switch Specifications:
- Orientation: Horizontal
- Actuation Type: Raised
- Actuator Type: Side
- External Width: 10.4mm
- No. of Poles: 1
- Circuit Options: 1P2T, 1P3T
- Operating Force: 0.98N
- Travel: 21.5±0.2mm
- Operating Temperature Range: -30°C to +80°C
- Storage Temperature Range: -40°C to +90°C
- Electrical Life: 50,000 Cycles
- Non-Switching Rating: 0.2mA, 5V DC
- Switching Rating: 300mA, 4V DC
- Max Contact Resistance: 70mΩ
- Min Insulation Resistance: 100MΩ at 250V DC
- Dielectric Strength: 100V AC/1 Minute
- Materials: Cover Nickel Silver, Contact Disc Alloy Copper with Gold Cladding, Terminal Phosphor Bronze with Silver Cladding, Base & Stem Nylon High Temperature Thermoplastic
- Color Options: Black (1P2T), Brown (1P3T)
Buy the Multicomp Pro Series Recoil Slide Switch: MCS2SA15F
Purchase the Recoil Slide Switch from Multicomp Pro online today to enjoy dependable performance and durable construction. Designed for precise electronic applications, this switch features a compact 10.4mm width, operating temperature range from -30°C to +80°C, and a lifespan of 50,000 cycles. Its robust materials include nickel silver, alloy copper contacts with gold cladding, and nylon thermoplastic base, ensuring long-lasting, reliable performance in demanding environments. Get yours now and enhance your electronic circuitry with trusted quality.
Order your Multicomp Pro Series Recoil Slide Switch today and ensure reliable, precise switching for your electronic projects.
