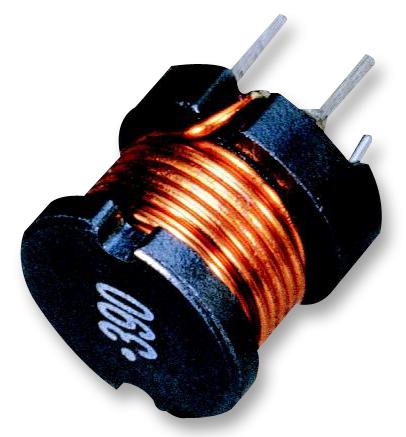

MULTICOMP PRO MCSCH110680KU Power Inductor
The inductor features a radial leaded design suitable for various electronic applications, operating efficiently within -55°C to +130°C temperature range. Constructed with a DL5 core and high-temperature UEFN/U wire at 155°C, it offers reliable inductance and low DCR under maximum operating conditions. Its robust construction ensures excellent solderability with lead-free solder, satisfying RoHS standards. The product demonstrates high reliability through environmental testing, including moisture resistance, temperature cycling, and steam aging, making it ideal for industrial power supplies, filters, and signal processing. Compact dimensions and high thermal tolerance ensure easy integration into electronic assemblies and circuits.
MULTICOMP PRO MCSCH110680KU Power Inductor Specifications:
- Core Material: DL5 DR4W 10 x 10 RSN B4.5 FS
- Wire: @0.45mm x 2 UEFN/U (155°C)
- Temperature Range: -55°C to +130°C
- Inductance: 68H ±10%, tested at 25°C with value around 67.68μH
- DCR Max: 0.12Ω at 25°C
- Operating Voltage: Not specified, suitable for power circuitry
- Dimensions (A): 10.19 mm, (B): 9.36 mm, (c): 3.47 mm, (D): 1.05 mm, (E1): 5.07 mm, (E2): 4.02 mm, (F): 0.65 mm
- Test Conditions: Inductance tested at 25°C, with a temperature rise of 40°C and DCR max of 6mΩ
- Manufactured with lead-free solder: Sn99.3% / Cu0.7%
- RoHS Compliant, RoHS and moisture resistance tested to industry standards
- High reliability with thorough environmental testing including humidity and moisture resistance
Buy the Multicomp Pro 68H-10% Radial Leaded Inductor – Reliable Power Component for Industrial Applications
Upgrade your electronic projects with the Multicomp Pro Power Inductor, offering high thermal tolerance, low DCR, and RoHS compliance. Its radial leaded design ensures easy installation in industrial power supplies, filters, and signal processing systems. Constructed with durable materials and tested for environmental robustness, this inductor maintains excellent inductance and low resistance even under extreme temperature variations from -55°C to +130°C. With a compact size, reliable solderability, and adherence to industry standards, it’s your ideal choice for high-performance, reliable electronic solutions.
Buy Multicomp Pro 68H-10% radial leaded inductor now and experience unmatched reliability and performance in your power supply and filtering circuits.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCSCH110680KU?
You can click on the BUY or RFQ button to purchase MCSCH110680KU from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCSCH110680KU?
You can download the MCSCH110680KU datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCSCH110680KU?
MULTICOMP PRO
