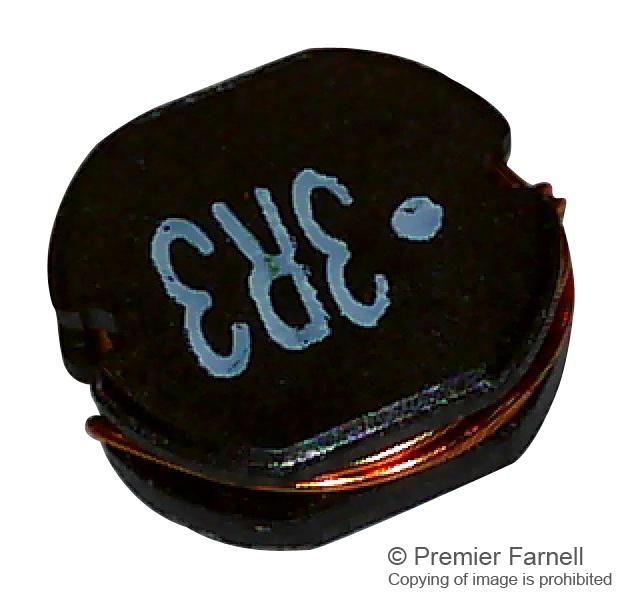

MULTICOMP PRO MCSD75331KU Inductor
The 330UH inductor is a high-quality SMD component suitable for various electronic applications. It features a ferrite core, a maximum DC resistance of 1.260Ω, and a rated current of 400mA. With dimensions of 5mm length, 7mm width, and 7mm depth, it operates reliably between -55°C and +130°C. Its resonant frequency at 100kHz makes it ideal for filtering and energy storage in compact circuits. RoHS compliant, this inductor ensures environmental safety and high performance in demanding industrial projects.
MULTICOMP PRO MCSD75331KU Inductor Specifications:
- Inductance: 330UH
- Inductance Tolerance: ±10%
- DC Resistance Max: 1.260Ω
- DC Current Rating: 400mA
- Inductor Case Style: SMD
- Number of Pins: 2
- Lead Spacing: 3mm
- Core Material: Ferrite
- External Depth: 7mm
- External Length / Height: 5mm
- External Width: 7.8mm
- Resonant Frequency: 100kHz
- Operating Temperature Range: -55°C to +130°C
- Material: Solder (Lead-Free) Sn99.3%/Cu0.7%
- Wire @0.2mm x 1P 2UEWF 155°C
Buy the Multicomp RC – Reliable 330UH Inductor for Industrial Applications
Enhance your electronics projects with this high-quality 330UH SMD inductor. Suitable for filtering and energy storage, it features a ferrite core, RoHS compliance, and reliable performance from -55°C to +130°C. With a compact size of 5mm by 7mm, and a maximum DC resistance of 1.260Ω at 400mA, it is ideal for industrial applications requiring durability and efficiency. Order online now to secure this essential component for your next project.
Order your Multicomp SeriesMCSD75 330UH inductor today and enhance your electronic projects with dependable filtering and energy storage performance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCSD75331KU?
You can click on the BUY or RFQ button to purchase MCSD75331KU from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCSD75331KU?
You can download the MCSD75331KU datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCSD75331KU?
MULTICOMP PRO
