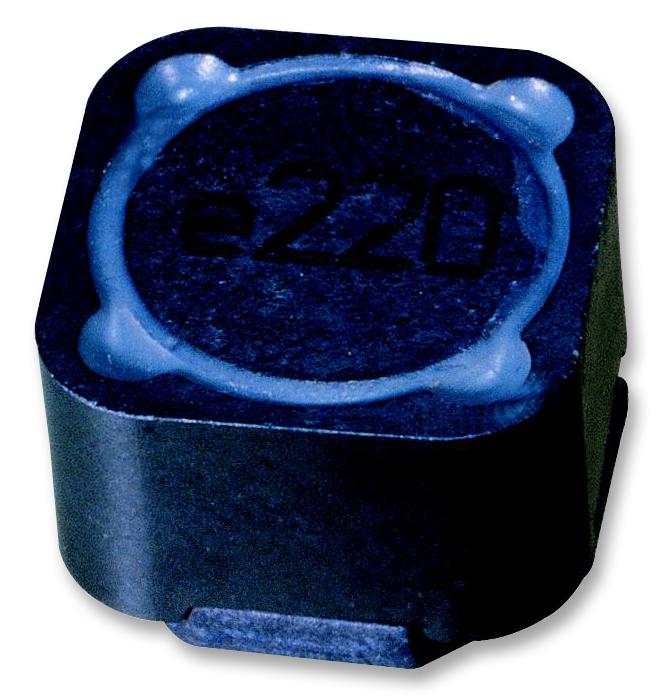

MULTICOMP-PRO MCSDRH125B221MHF Power Inductor
These high-current SMD power inductors are designed for efficient power line DC-DC conversion, LCD drivers, and high-density electronic applications. They feature ferrite cores with low core loss, operating from -55°C to +130°C. Series MCSDRH73B and MCSDRH125B offer inductance values ranging from 1μH to 1000μH, with current capacities up to 24.2A. Compact and low profile (3.55mm to 6mm height), they ensure reliable performance in notebook computers, power modules, and integrated volatile power supplies, ideal for demanding electronic circuits requiring stable current and minimal electromagnetic interference.
MULTICOMP-PRO MCSDRH125B221MHF Power Inductor Specifications:
- Inductance range: 1μH to 1000μH
- Series: MCSDRH73B and MCSDRH125B
- Current capacity: Up to 24.2A
- Operating temperature: -55°C to +130°C
- Footprint: 7.6mm x 7.6mm and 12.5mm x 12.5mm
- Height: Maximum 3.55mm for MCSDRH73B, maximum 6mm for MCSDRH125B
- Core Material: Ferrite
- Low core loss design
- RoHS compliant
- Application: DC/DC converters, LCD drivers, notebook power supplies
- Impedance and Q at specific frequencies
- Stable inductance over temperature and current
- Surface-mount design for high-density boards
- Maximum DC current: 8 A to 24.2 A depending on the series and part number
- Dimensions based on series specifications
- Designed for reliable performance in electronic power supplies
Buy the Multicomp Series MCSDRH125B Power Inductor: MCSDRH125B221MHF
Purchase the Multicomp Series MCSDRH125B221MHF power inductor online today and benefit from high current capacity, compact size, and excellent thermal stability. Designed for demanding electronic applications such as DC-DC converters, LCD drivers, and notebook power supplies, this surface-mount inductor ensures minimal electromagnetic interference and reliable operation in high-density circuit boards. With a maximum height of 6mm and inductance of 220μH, it is perfect for engineers seeking high-performance magnetic components for efficient power management and compact device design.
Order your Multicomp Series MCSDRH125B221MHF power inductor today and enhance your circuit's efficiency with reliable high-current performance.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCSDRH125B221MHF?
You can click on the BUY or RFQ button to purchase MCSDRH125B221MHF from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCSDRH125B221MHF?
You can download the MCSDRH125B221MHF datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCSDRH125B221MHF?
MULTICOMP-PRO
