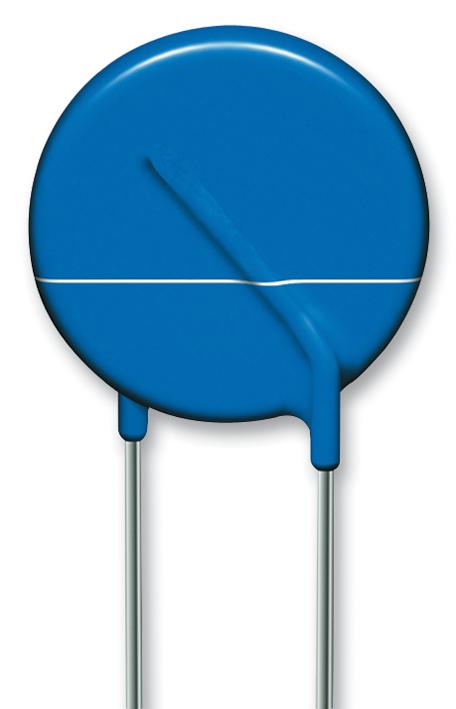

MULTICOMP PRO MCSR201K05DS Zinc Oxide MOV Varistor
The Zinc Oxide MOV varistor is a 5mm ceramic disk component designed for surge suppression in electronic circuits. With an electrical rating ranging from 185 to 225 volts, it offers a maximum clamping voltage of 340V at 5A. Its construction features zinc oxide material, silver paste electrodes, and epoxy resin encapsulation for durability. The device withstands surge currents up to 400A, with a transient power rating of 0.15W. Its compact size and excellent voltage protection make it ideal for overvoltage protection in various electronic applications.
MULTICOMP PRO MCSR201K05DS Zinc Oxide MOV Varistor Specifications:
- Material: Ceramic Disk with Zinc Oxide core
- Electrode Material: Silver Paste
- Lead Material: Tin Plated Copper Wire
- Size: Dmax 7mm, Thickness 3.6mm
- Varistor Voltage: Min 185V, Max 225V
- Maximum Allowable AC rms: 130V
- DC Voltage: 175V
- Clamping Voltage at 5A, 8/20us: 340V
- Surge Withstanding Current: 400A (8/20us)
- Rated Power Dissipation: 0.15W
- Maximum Energy: 8.5 Joules (10/1000us), 5 Joules (2mS)
- Capacitance at 1kHz: 140 pF
- D max: 7mm
- Encapsulation: Epoxy resin
- Lead Length: Hmax 40mm, L min 25mm
Buy the Multicomp Series MOV Varistor: MCSR201KO05DS
Secure your electronic devices with the Zinc Oxide MOV varistor, designed for high surge current resistance and reliable overvoltage protection. Its zinc oxide core, silver paste electrodes, and epoxy resin encapsulation ensure durability and consistent performance. Suitable for overvoltage protection in a range of applications, it withstands surge currents up to 400A and provides a maximum clamping voltage of 340V at 5A. Compact and easy to integrate, this varistor is essential for safeguarding sensitive electronic equipment from voltage spikes.
Order your Multicomp Series MOV Varistor today and ensure reliable surge protection for your electronic projects with high surge current resistance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCSR201K05DS?
You can click on the BUY or RFQ button to purchase MCSR201K05DS from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCSR201K05DS?
You can download the MCSR201K05DS datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCSR201K05DS?
MULTICOMP PRO
