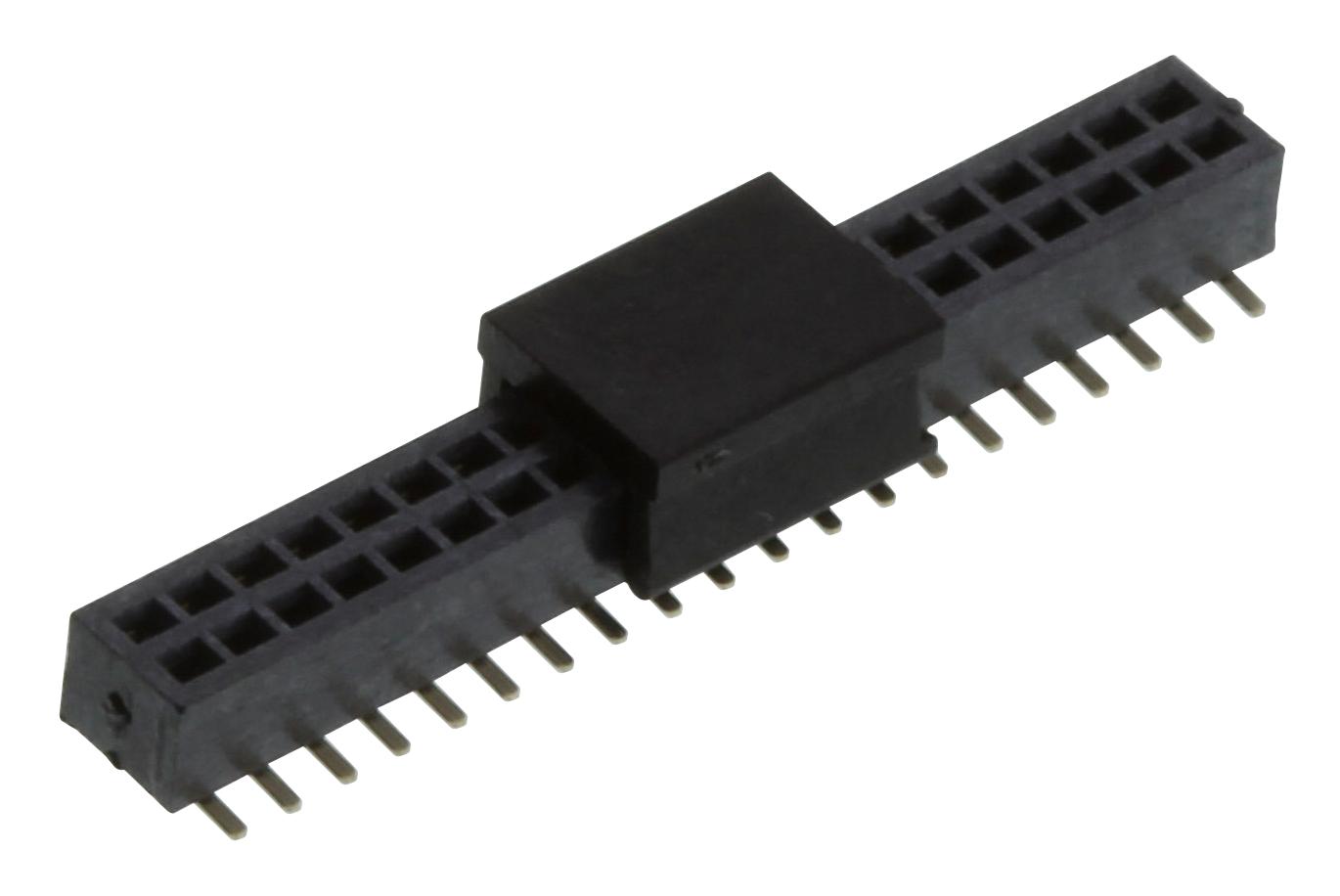

MULTICOMP-PRO MCSVS1D40G Vertical SMD PCB Socket
This PCB socket with cap is a reliable vertical SMD connector designed for industrial electronic applications. It features a double row configuration with various lengths up to 40 positions. Constructed from high-temperature nylon (UL94V-0) and gold-plated phosphor bronze contacts for optimal electrical conductivity. Rated for 1A at 100V, it offers excellent insulation resistance and dielectric withstand voltage. The socket accommodates 1mm pitch and is RoHS compliant, ensuring safety and environmental standards are met. Suitable for assembling compact, durable electronic modules with secure connection integrity.
MULTICOMP-PRO MCSVS1D40G Vertical SMD PCB Socket Specifications:
- Current Rating: 1A AC/DC
- Voltage Rating: 100V AC/DC
- Contact Resistance: 20mΩ Max
- Insulation Resistance: 5000MΩ Min
- Dielectric Withstanding Voltage: 500V AC
- Operating Temperature Range: -40°C to +105°C
- Materials: High-temp Nylon 6T insulator, Phosphor Bronze contacts
- Finish: Gold-plated
- Number of Positions: Up to 40
- Pitch: 1mm
- Dimensions: Millimetres, specific to each model
- RoHS Compliant
Buy the Multicomp 40POS Vertical SMD PCB Socket for Industrial Applications
Enhance your electronic assembly with this reliable vertical SMD PCB socket designed for industrial use. Featuring a 1mm pitch, high-temp nylon insulation, and gold-plated contacts, it ensures stable electrical connections. Compatible with up to 40 positions, it offers excellent insulation and dielectric performance, rated for 1A and 100V. Ideal for compact, durable circuits requiring secure, vibration-resistant connections. Purchase online now to benefit from fast shipping, quality assurance, and easy integration into your manufacturing or repair projects.
Buy Multicomp 40POS Vertical SMD PCB Socket now and experience reliable performance in your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCSVS1D40G?
You can click on the BUY or RFQ button to purchase MCSVS1D40G from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCSVS1D40G?
You can download the MCSVS1D40G datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCSVS1D40G?
MULTICOMP-PRO
