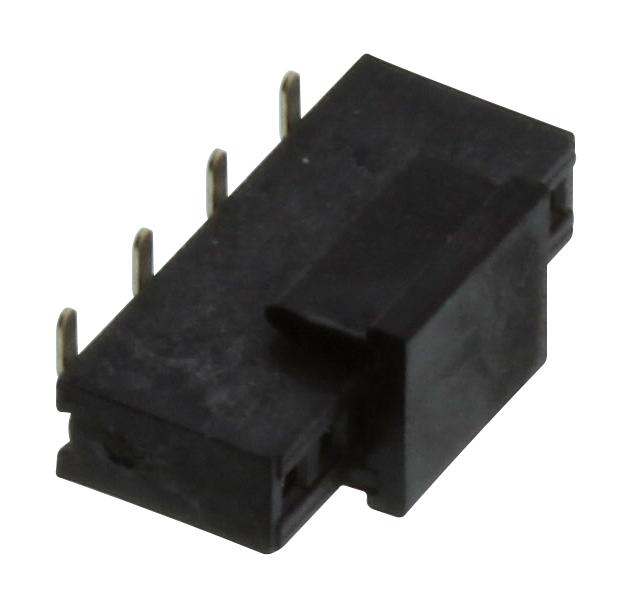

MULTICOMP-PRO MCSVS1S08G PCB Socket
This 1.27mm PCB socket with cap is a single row, vertical, SMD type connector designed for precise PCB connections in electronic assemblies. It features a high-temperature plastic insulator rated UL94V-0, gold-plated phosphor bronze contacts, and complies with RoHS standards. Suitable for industrial and electronic development projects, it offers excellent current and voltage ratings of 1A AC/DC and 50V AC/DC, with reliable contact resistance of 20mΩ max. Operating within -25°C to +105°C, ensuring durability in various environments, this socket is ideal for compact, high-density circuit designs.
MULTICOMP-PRO MCSVS1S08G PCB Socket Specifications:
- Current Rating: 1A AC/DC
- Voltage Rating: 50V AC/DC
- Contact Resistance: 20mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Withstanding Voltage: 500V AC for one minute
- Operating Temperature Range: -25°C to +105°C
- Material: High temp. plastic (UL94V-0), phosphor bronze
- Plating: Gold-plated
- Dimensions: varies with number of positions, e.g., 2.54 mm for 3-position, 3.81 mm for 4-position, 5.08 mm for 5-position, up to 11.43 mm for 10-position
Buy the Multicomp Pro Series PCB Socket 1.27mm Vertical SMD: MCSVS1S08G
Purchase the Multicomp Pro 1.27mm PCB Socket online today and enjoy a reliable, high-quality connector designed for precision in industrial electronic assemblies. This vertical SMD socket with cap offers excellent electrical performance, durability, and RoHS compliance, making it suitable for a wide range of applications. Ideal for high-density PCB layouts, it ensures secure connections with a current rating of 1A and voltage of 50V, operating effectively from -25°C to +105°C. Order now to enhance your circuit designs with confidence.
Get Multicomp Pro 1.27mm PCB Socket today—built for precise electronic connections and long-lasting durability.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCSVS1S08G?
You can click on the BUY or RFQ button to purchase MCSVS1S08G from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCSVS1S08G?
You can download the MCSVS1S08G datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCSVS1S08G?
MULTICOMP-PRO
