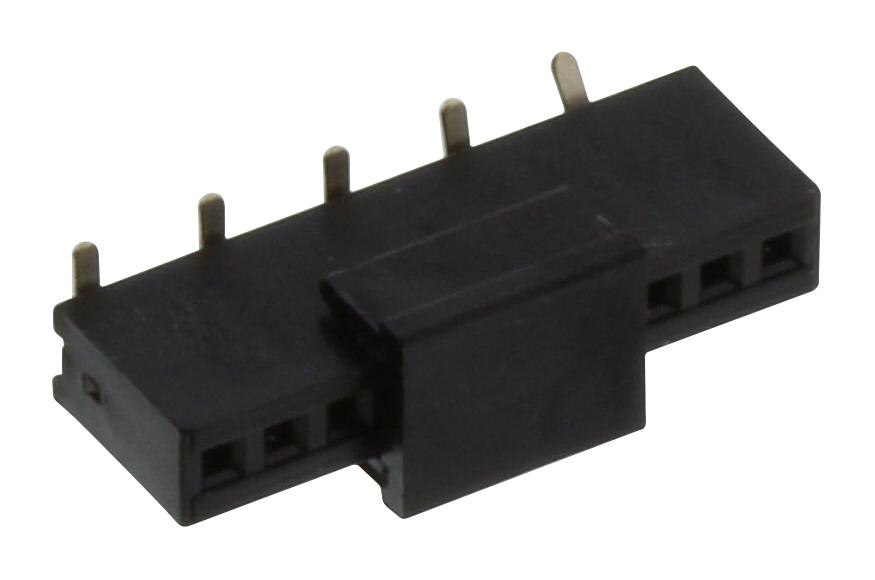

MULTICOMP PRO MCSVS1S10G PCB socket
This 1.27mm PCB socket with cap is a reliable vertical, SMD type connector designed for efficient electronic assembly. It features a single row configuration with various positions, such as 3, 4, 5, 6, 7, 8, 9, and 10, suitable for compact circuit board connections. The socket is made with high-temperature plastic insulators (UL94V-0), with phosphor bronze contacts plated in gold for optimal conductivity and corrosion resistance. It supports a current rating of 1A AC/DC, a voltage rating of 50V AC/DC, with insulation resistance ≥1000MΩ, contact resistance ≤20mΩ, and withstand voltage up to 500V AC. Operating temperature ranges from -25°C to +105°C, making it ideal for demanding industrial environments. Precise dimensions and layout ensure ease of integration in electronics projects.
MULTICOMP PRO MCSVS1S10G PCB socket Specifications:
- Pitch: 1.27mm
- Current Rating: 1A AC/DC
- Voltage Rating: 50V AC/DC
- Contact Resistance: ≤20mΩ
- Insulation Resistance: ≥1000MΩ
- Withstanding Voltage: 500V AC for one minute
- Operating Temperature: -25°C to +105°C
- Insulator Material: High-temperature plastic (UL94V-0)
- Contact Material: Phosphor bronze
- Contact Finish: Gold plated
- Dimensions: Variable based on number of positions (e.g., 3POS: 2.54mm x 4.19mm, 10POS: 11.43mm x 13.08mm)
Buy the Multicomp Pro 1.27mm PCB Socket – Reliable Connection for Industrial Applications
Enhance your electronic assembly with the reliable 1.27mm pitch PCB socket featuring a cap for secure connections. Designed for vertical, SMD mounting, this high-quality connector features gold-plated phosphor bronze contacts, high-temperature resistant plastic insulators, and supports currents up to 1A with a maximum voltage of 50V. Its insulator provides excellent electrical insulation, durability, and safety, operating efficiently within -25°C to +105°C temperature ranges. Available in multiple configurations from 3 to 10 positions, it offers versatile, space-saving solutions for your circuit board connections. Easily buy online today.
Order your Multicomp Pro Series MCSVS1-S10-G 1.27mm PCB Socket with Cap today and ensure dependable, precise connections for your electronic projects.
