MULTICOMP PRO MCT18X10X10C102NU Common Mode Choke
This common mode choke from Multicomp Pro is designed for noise suppression in electronic circuits, featuring a 1 millihenry inductance with a 6A current rating. Built with A07 T18 core material, it offers excellent impedance at high frequencies, ensuring reduced electromagnetic interference. Its compact size and RoHS compliance make it suitable for modern electronic assemblies. The choke operates reliably over a temperature range of -55°C to +130°C, with low DCR and high insulation resistance. Ideal for power supplies, data lines, and industrial controls, it enhances system stability and minimizes signal noise effectively.
MULTICOMP PRO MCT18X10X10C102NU Common Mode Choke Specifications:
- Inductance: 1mH ±30%
- Current Rating: 6A
- DCR (1-4): 8.4 mΩ (max.) at 25°C
- DCR (2-3): 8.42 mΩ (max.) at 25°C
- Operating Temperature: -55°C to +130°C
- Core Material: A07 T18 x 10 x 10C (Red)
- Wire: UEFN/U (155°C), 1mm diameter
- Solder: Lead-free Sn99.3% / Cu0.7%
- Humidity Resistance: 60°C, 60% RH, 40 hrs
- Moisture Sensitivity Level: J-STD-020B level 3
- Solderability: Minimum 95% coverage, 260°C for 5 seconds
- Test Voltage (Hi-Pot): 1,500V AC for 1 min
- Mechanical Dimensions: Diameter 10mm, height approximately 10mm
- RoHS Compliant, UL Recognized

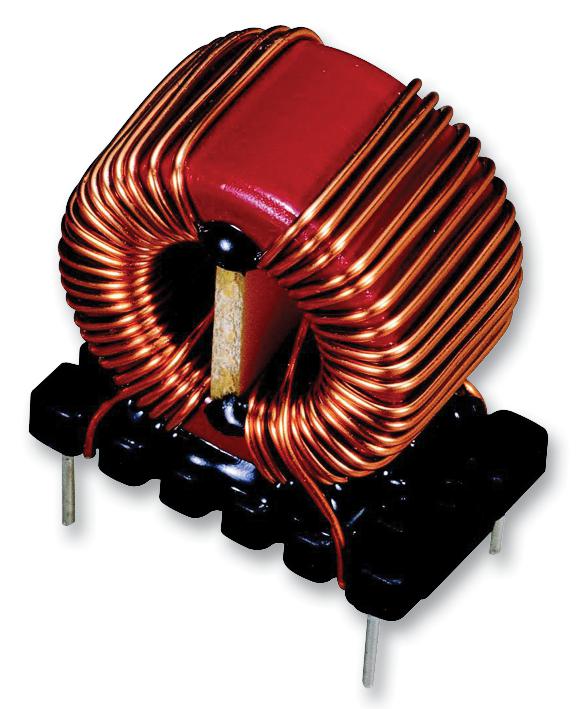

Buy the Buy Multicomp Common Mode Choke Part Number MCT18X10X10C-102NU Online
Enhance your electronic assemblies with the reliable Multicomp Pro common mode choke, rated at 1mH and capable of handling 6A. Designed with high-quality A07 T18 core material, it provides excellent noise filtering across a wide temperature range from -55°C to +130°C. Its compact size makes it suitable for various applications such as power supplies, data lines, and industrial controls. RoHS compliant and tested for moisture resistance, this choke ensures system stability by minimizing electromagnetic interference efficiently and sustainably, making it an essential component for professional electronic projects.
Buy Multicomp Pro common mode choke MCT18X10X10C-102NU now and ensure reliable noise suppression in your electronic designs.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCT18X10X10C102NU?
You can click on the BUY or RFQ button to purchase MCT18X10X10C102NU from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCT18X10X10C102NU?
You can download the MCT18X10X10C102NU datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCT18X10X10C102NU?
MULTICOMP PRO
