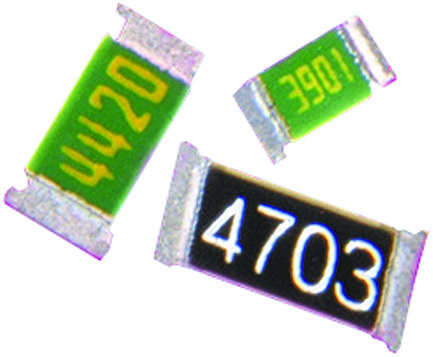

MULTICOMP PRO MCTC0525B2262T5G High Power Chip Resistor
This high-power chip resistor features excellent pulse withstanding performance and a high power rating. It has a maximum working voltage of 100V, with a tolerance of ±0.1% and an industry-standard temperature coefficient of ±25ppm/°C. The operating temperature range spans from -55°C to 155°C. Manufactured by Multicomp Pro, it is rated highly with a 4.6 out of 5-star rating, and comes with a 12-month limited warranty. Please note that due to high market demand, delivery times may be extended, and the product is exempt from discounts.
MULTICOMP PRO MCTC0525B2262T5G High Power Chip Resistor Specifications:
- Case Size: 0805
- Power Rating at 70°C: 0.125W
- Max. Working Voltage: 150V
- Max. Overload Voltage: 300V
- Dielectric Withstanding Voltage: 500V
- Resistance Range: 109 to 1MΩ
- Resistance Tolerance: ±0.1%
- Temperature Range: -55°C to +155°C
- Ambient Temperature: 270°C
- Industry Standard Temperature Coefficient: ±25PPM/°C
- Construction: High purity Alumina substrate, Sn outer terminations, Ni barrier middle terminations, Ag resistive element inner terminations
- Dimensions: Length 40.1mm, Width 0.55mm, Height 0.30mm
- Effective resistance values conform with E-24 and E-96 series
- Solderability and thermal shock resistance tested to industry standards
- Reel dimensions: 13mm diameter with 178mm length reel, tape peeling force 0.1-0.7N
Buy the Multicomp Pro 2262T5G – Reliable High-Power Chip Resistor for Industrial Applications
Purchase the high power chip resistor designed for industrial use today. With excellent pulse withstand performance and wide resistance range, this component operates from -55°C to 155°C with industry-standard tolerances of ±0.1%. Rated at 0.125W power at 70°C, it can handle high voltages up to 150V and overload voltages up to 300V, making it ideal for demanding electronic applications. Its compact 0805 case size and robust construction ensure reliability in various industrial and manufacturing settings. Buy online now for fast delivery and ongoing support.
Get Multicomp Pro 2262T5G today—built for precision and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCTC0525B2262T5G?
You can click on the BUY or RFQ button to purchase MCTC0525B2262T5G from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCTC0525B2262T5G?
You can download the MCTC0525B2262T5G datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCTC0525B2262T5G?
MULTICOMP PRO
