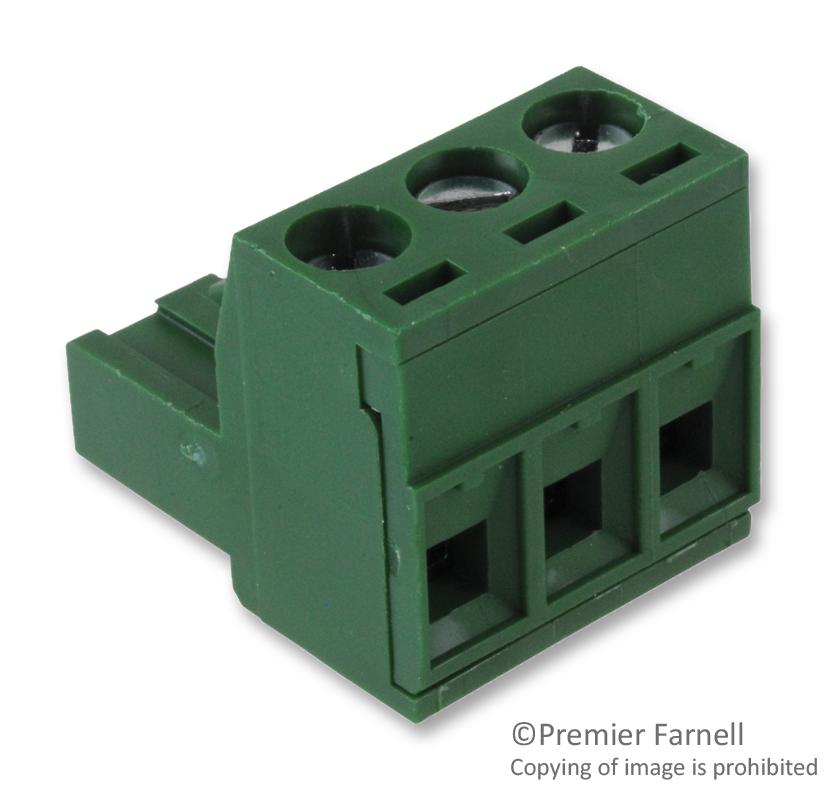

MULTICOMP PRO MCTC10C03 Pluggable Terminal Block
The MCTC-10C03 is a three-position pluggable terminal block that features phosphor bronze contacts with tin plating, supporting wire sizes from 24 to 12 AWG. Designed with an insulative body made from polyamide 66 in green, it provides reliable electrical connections with a current rating of 16 Amperes and maximum voltage of 300V AC. Its compact design includes horizontal wire entry and a cage clamp securing wires for industrial applications. The terminal block supports operating temperatures from -40°C to +105°C, with wire strip lengths of 4mm to 5mm and screw torque of 7 inch-lb, complying with RoHS standards.
MULTICOMP PRO MCTC10C03 Pluggable Terminal Block Specifications:
- Current Rating: 16 Amperes at 300V AC
- Min. Insulation Withstand Voltage: 1000V AC
- Insulation Resistance: >2,000MQ at 500V DC
- Operating Temperature: -40°C to +105°C
- Wire Strip Length: 4mm to 5mm
- Wire Range: 24-12 AWG
- Screw Torque: 7 inch-lb
- Material: Insulating body Polyamide 66, contact Phosphor Bronze, cage clamp Brass, screw Steel
- Plating/Finish: Tin-plated contacts, Ni-plated cage clamp, Zinc+Cr screw
- Dimensions (mm): 20.32 (0.8 inches) for 4-pole, with wire entry in horizontal orientation
Buy the Multicomp Series MC Pluggable Terminal Block: MCTC10C03
Order the Multicomp MC terminal block MCTC10C03 online today to experience secure, high-quality electrical connections with easy installation and industry compliance. This three-position terminal block supports wire sizes from 24 to 12 AWG, ensuring versatility for your electrical projects. Its design facilitates quick connection and disconnection, reducing maintenance time. Made with durable materials like polyamide 66 and tin-plated contacts, it withstands harsh environments, supporting temperatures from -40°C to +105°C. Online purchase ensures prompt delivery and reliable supply for your industrial, automation, or control applications.
Buy Multicomp MC terminal block MCTC10C03 now and ensure reliable, easy-to-install wiring connections for industrial control systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCTC10C03?
You can click on the BUY or RFQ button to purchase MCTC10C03 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCTC10C03?
You can download the MCTC10C03 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCTC10C03?
MULTICOMP PRO
