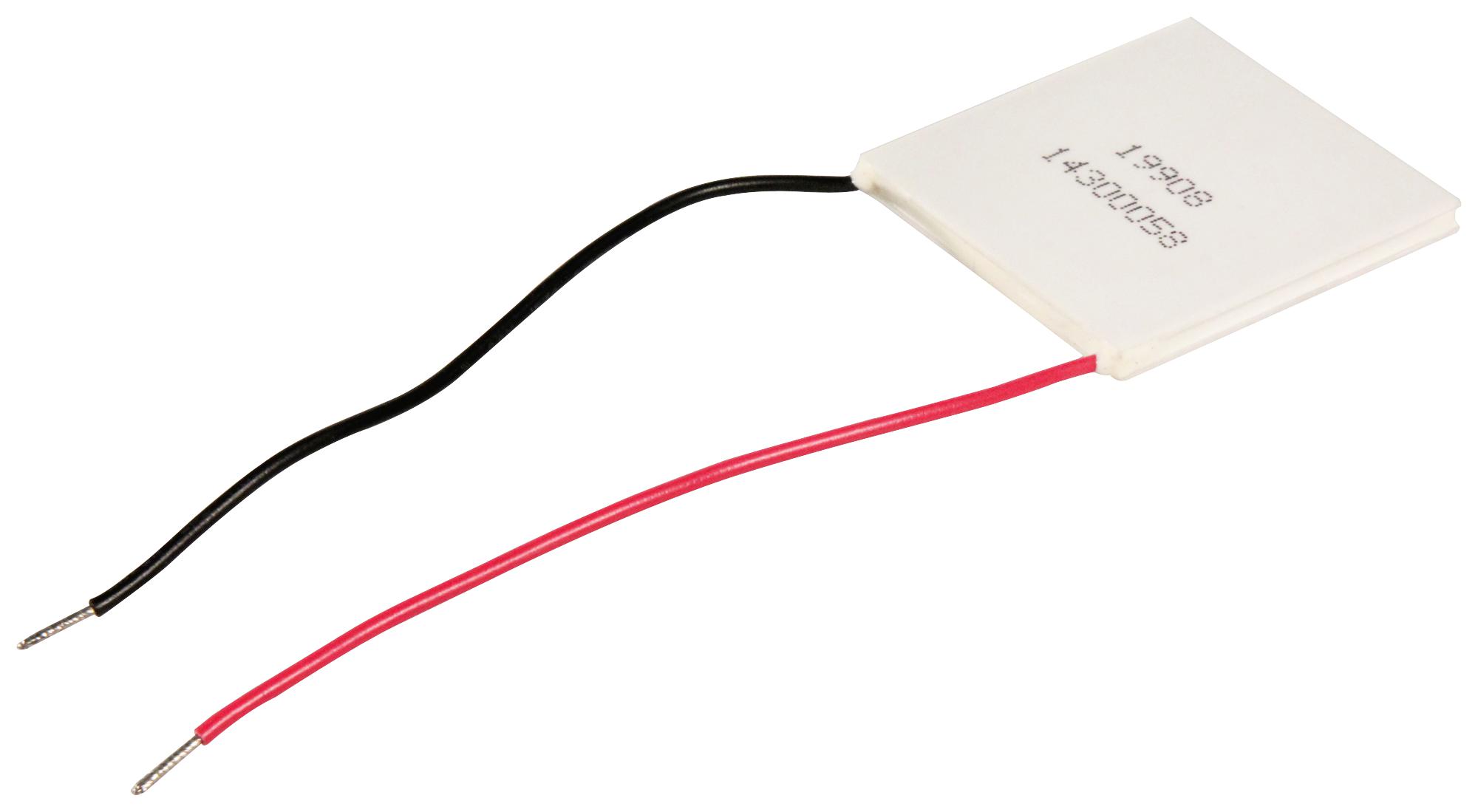

MULTICOMP PRO MCTE119908LS Thermoelectric Cooler
Miniature cooling modules designed for thermal management of sensitive components such as infrared detector chips, microwave integrated circuits, fiber-optic lasers, and detectors. Custom designs are available to meet specific requirements. All module types can be bonded using a heat sink bonder, with various finishes offered for different operating conditions. Standard devices accommodate a wide range of pellet geometries. Single-stage modules provide cooling power from a few milliwatts up to several hundred watts. These modules are sealed with silicone for moisture protection. Multicomp products are highly rated, with a 4.6 out of 5-star rating, and come with a 12-month limited warranty. Most customers would recommend these to others.
MULTICOMP PRO MCTE119908LS Thermoelectric Cooler Specifications:
- Internal resistance: 2.350 + 10%
- Maximum current: 8.5A
- Maximum voltage: 24.1V
- Maximum heat pumping capacity: 118W
- Maximum temperature difference: 68°C
- Solder melting point: 138°C
- Maximum compression: 98.07N/cm (10 kgf/cm)
- Operating range: -40°C to +90°C
- Sealed with silicone for moisture protection
- Suitable for bonding with heat sink bonder
- Pellet geometries: standard and custom options
- Device rating: single-stage, available in various configurations
- Handle with care to avoid mechanical shock
- Surface flatness should be under 0.02mm
- Design caters for applications in infrared detectors, fiber-optic lasers, and microwave circuits
- Rated for thermal management of sensitive components, providing cooling from milliwatts to hundreds of watts
Buy the Buy Multicomp Thermoelectric Cooler Part Number MCTE119908LS Online
Enhance your thermal management solutions with the high-quality Multicomp thermoelectric cooler MCTE119908LS. Designed for infrared detectors, lasers, and sensitive electronic components, it offers reliable cooling performance, moisture sealing, and customizable options. This miniature module supports a wide operating temperature range from -40°C to +90°C, making it ideal for demanding applications. Its efficient heat pumping capability up to 118W and robust construction provide durability and consistent results. Purchase online today and ensure optimal performance and protection for your electronic projects with this trusted cooling solution.
Order your Multicomp thermoelectric module MCTE119908LS today and ensure precise thermal management for sensitive electronics and detectors.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCTE119908LS?
You can click on the BUY or RFQ button to purchase MCTE119908LS from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCTE119908LS?
You can download the MCTE119908LS datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCTE119908LS?
MULTICOMP PRO
