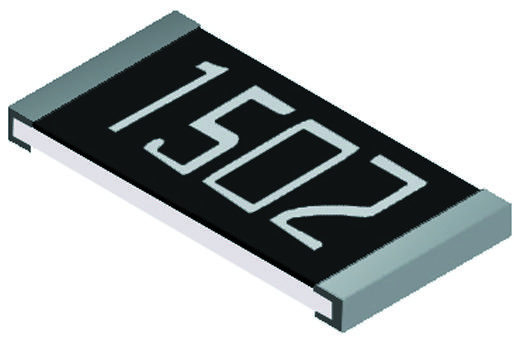

MULTICOMP PRO MCTF0805BTC1003 Precision Resistor
The MCTF series thin film NiCr passivated resistor offers a wide resistance range with tight tolerances from ±0.01% to 1%, making it ideal for high-precision electronic applications. Manufactured with advanced thin film technology on alumina substrates, it ensures low TCRs down to +5PPM/°C and stability under various environmental conditions. Its construction includes electrodes of Ag-Pd and NiCr barrier layers, encapsulated in epoxy. Suitable for medical, testing, communication, and converter equipment, this resistor features dimensions of 240.15 mm length and 1.25 mm width, with robust environmental tolerance and high reliability for precise electronic circuits.
MULTICOMP PRO MCTF0805BTC1003 Precision Resistor Specifications:
- Resistance Range: 4.70 - 1MQ
- Tolerance: 0.01% to 1%
- TCR: +5PPM/°C
- Power Rating at 70°C: 1/10W
- Max Operating Voltage: 100V
- Max Overload Voltage: 200V
- Dimensions: Length 240.15 mm, Width 1.25 mm, Thickness approximately 0.15 mm
- Construction: Alumina substrate with Ag-Pd electrodes, NiCr barrier layer, epoxy overcoat
- Temperature Range: -55°C to +155°C
- Environmental: Insulation Resistance >1,000MQ, Endurance >7000 hours
- Soldering: IR reflow at 260°C for 10 seconds
- Marking: Z 4992
- Packaging: 5,000 pcs in paper tape with specified reel dimensions
Buy the Multicomp Series0805 – Reliable Precision Resistor for Industrial Applications
Purchase your Multicomp Series0805 precision resistor online today to enjoy fast delivery and trusted quality. Designed for high-precision applications, this resistor features tight tolerance of 0.01%, low TCR of +5PPM/°C, and a wide resistance range from 4.70 ohms to 1 megaohm. Suitable for medical equipment, testing devices, communication systems, and automation controllers, it provides exceptional stability and reliability. Whether for new designs or maintenance, buying online guarantees quick access to dependable resistors essential for your high-performance circuits.
Order your Multicomp Series0805 precision resistor today and ensure your electronic projects benefit from dependable, high-accuracy performance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCTF0805BTC1003?
You can click on the BUY or RFQ button to purchase MCTF0805BTC1003 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCTF0805BTC1003?
You can download the MCTF0805BTC1003 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCTF0805BTC1003?
MULTICOMP PRO
