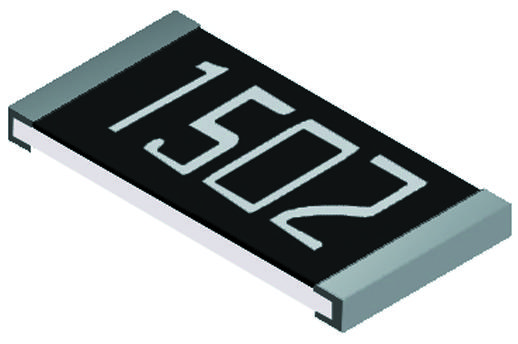

MULTICOMP PRO MCTF0805DTC1000 Precision Resistor
The MCTF series thin film NiCr passivated resistor offers a wide resistance range with very tight tolerances from ±0.01% to 1%. Suitable for precision applications, it provides excellent stability, reliability, and high performance in various electronic circuits. Designed for use in testing, measurement, medical, printer, and communication equipment, this resistor is constructed on an alumina substrate with Ag electrodes and NiCr resistor layer, overcoated with epoxy for durability. Its dimensions are approximately 2.0 mm x 1.25 mm x 0.15 mm, capable of handling power ratings up to 1/10W at 70°C.
MULTICOMP PRO MCTF0805DTC1000 Precision Resistor Specifications:
- Resistance Range: 4.70Ω to 1MΩ
- Tolerance: ±0.01% to ±1%
- Power Rating: 1/10W at 70°C
- Operating Temperature: -55°C to +155°C
- Maximum Voltage: 100V operating, 200V overload
- Dimensions: approximately 2.0 mm x 1.25 mm x 0.15 mm
- Construction: Alumina substrate, Ag bottom electrode, Ag-Pd top electrode, NiCr resistor layer, epoxy overcoat
- TCR: Very low, down to +5PPM/°C
- RoHS compliant
- Application: Precision circuits, testing, measurement, medical equipment, communication devices
Buy the Multicomp NiCr – Reliable Precision Resistor for Industrial Applications
Order the Multicomp NiCr precision resistor online today—designed for high stability, tight tolerance, and durability. Perfect for medical, testing, measurement, and communication applications, it ensures reliable performance in critical circuits. With a wide resistance range and low TCR, this resistor offers exceptional precision. Its durable construction with alumina substrate and epoxy coating guarantees long-term stability. Whether for prototyping or mass production, buy this high-quality component online now for rapid delivery and dependable operation.
Get Multicomp NiCr precision resistor today—built for accuracy and long-lasting durability in demanding electronic circuits.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCTF0805DTC1000?
You can click on the BUY or RFQ button to purchase MCTF0805DTC1000 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCTF0805DTC1000?
You can download the MCTF0805DTC1000 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCTF0805DTC1000?
MULTICOMP PRO
