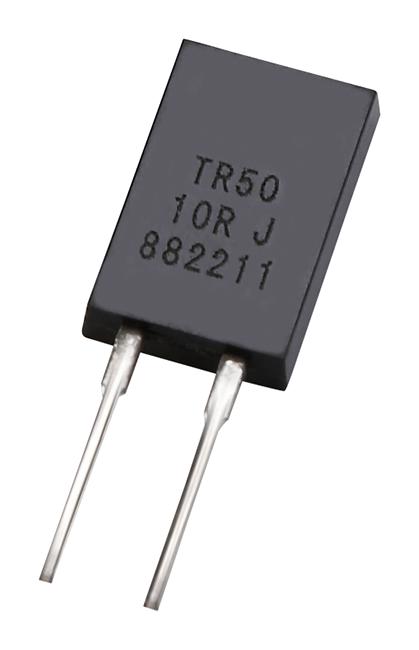

MULTICOMP-PRO MCTR50FDD1000 Power Resistor
The multicomp power resistor is a high-performance, TO-220 style device designed for switching power supplies, pulsing applications, UPS, and voltage regulation. It features a molded case for protection and easy mounting, with a non-inductive design optimizing high-frequency operations. Constructed on an alumina substrate with tinned copper leads, it offers a rated power of 50 watts at 25°C case temperature and an operating voltage up to 350V. Its robust construction ensures durability, making it suitable for demanding electrical and thermal environments, with compliance to RoHS standards.
MULTICOMP-PRO MCTR50FDD1000 Power Resistor Specifications:
- Power Rating: 50W at 25°C case temperature
- Case Material: Molded plastic with alumina substrate
- Lead Material: Tinned Copper
- Maximum Operating Voltage: 350V
- Dielectric Strength: 1,800V AC
- Insulation Resistance: 10GΩ min.
- Temperature Range: -65°C to +150°C
- Resistance Range: < 10Ω, with tolerance codes up to ±10%
- Temperature Coefficient of Resistance: referenced to 25°C
- Thermal Shock Resistance: 100 cycles between -65°C and +150°C
- Vibration Resistance: 20g peak
Buy the Multicomp Series Power Resistor: MCTR50FDD1000
Purchase the multicomp power resistor MCTR50FDD1000 online today for reliable high-power performance in switching power supplies, UPS, and pulsing applications. Featuring a TO-220 style package, molded case, and non-inductive design, this resistor handles 50 watts at 25°C case temperature. It offers excellent thermal stability, high dielectric strength, and broad resistance range, making it ideal for demanding industrial, electronic, and engineering applications. Secure fast delivery and quality assurance when you buy online now.
Get multicomp power resistor MCTR50FDD1000 today—built for high power, durability, and reliable electrical performance.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCTR50FDD1000?
You can click on the BUY or RFQ button to purchase MCTR50FDD1000 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCTR50FDD1000?
You can download the MCTR50FDD1000 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCTR50FDD1000?
MULTICOMP-PRO
