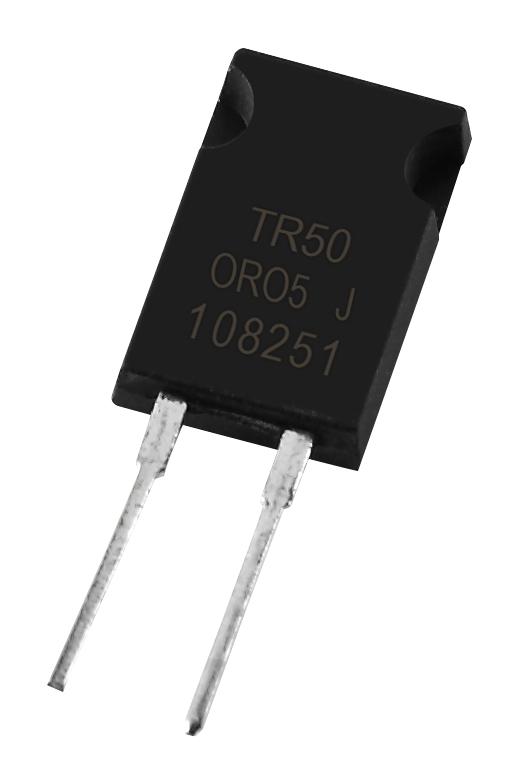

MULTICOMP PRO MCTR50FDE0100H Power Resistor
The multicomp power resistor offers a robust design with a 50W rating at 25°C case temperature, mounted on a heat sink for optimal cooling. Its TO-220 style package features ceramic exposure for enhanced heat dissipation, making it suitable for power supplies, high-frequency pulsing, and non-inductive applications. Constructed with alumina substrate, resistor layer, lead, and molded casing, it provides reliable electrical characteristics, including resistance ranges from 10Ω to 10kΩ, TCR values up to ±200 ppm/°C, and environmental resilience under overload, load life, and thermal shock tests. Ideal for demanding electronic systems requiring stable, high-power performance.
MULTICOMP PRO MCTR50FDE0100H Power Resistor Specifications:
- Power Rating: 50W at 25°C case temperature with heat sink mounted
- Resistance Range: 10Ω to 10kΩ
- TCR: Up to ±200 ppm/°C
- Operating Voltage: Max 420V DC
- Dielectric Strength: 1800V AC
- Insulation Resistance: ≥10GΩ
- Construction: Alumina substrate, resistor layer, lead, molded casing
- Lead Material: Tinned Copper
- Maximum Torque: 0.9 N-m
- Thermal Derating: Based on case temperature, with a typical case temperature contact point
- Environmental Tests: Overload, load life, thermal shock, damp heat, vibration compliance
- Dimensions: Millimetres, with design features for efficient heat dissipation
Buy the Buy multicomp Power Resistor Part Number MCTR50FDE0100H Online
Purchase the high-power multicomp resistor online today and ensure your electronic projects are equipped with a durable 50W power component. Its TO-220 style package with ceramic exposure design provides excellent heat dissipation, making it ideal for power supplies, pulsing applications, and high-frequency circuits. Easy to install with tinned copper leads, it delivers stable electrical performance over extensive environmental tests. Get quick delivery, competitive prices, and reliable quality by ordering this essential resistor online now to support your demanding electronic circuits with confidence.
Buy multicomp MCTR50FDE0100H now and experience unmatched reliability and high power performance suitable for demanding electronic applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCTR50FDE0100H?
You can click on the BUY or RFQ button to purchase MCTR50FDE0100H from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCTR50FDE0100H?
You can download the MCTR50FDE0100H datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCTR50FDE0100H?
MULTICOMP PRO
