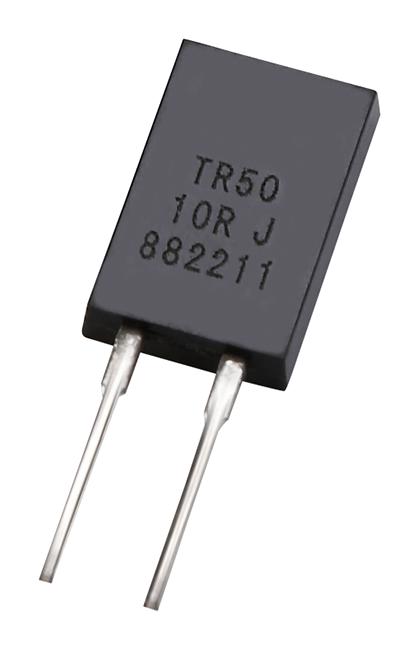

MULTICOMP-PRO MCTR50FDE0470 Power Resistor
The multicomp power resistor is a high-performance, TO-220 style device rated at 50 watts at 25°C, designed for switching power supplies, pulsing, and voltage regulation applications. Its mold-injected case offers protection and easy mounting, featuring a non-inductive construction for high-frequency stability. Constructed on an alumina substrate with details including resistance range <10Ω, resistance tolerance ±0.5%, voltage rating up to 350V, dielectric strength of 1,800V AC, and operating temperatures from -65°C to +150°C. Suitable for applications requiring reliable, high-power dissipation in compact industrial systems.
MULTICOMP-PRO MCTR50FDE0470 Power Resistor Specifications:
- Power Rating: 50 Watts at 25°C case temperature
- Case Style: TO-220
- Material: Molded case with alumina substrate
- Resistance Range: <10Ω
- Tolerance: ±0.5%
- Resistance Type: Non-Inductive
- Operating Voltage: Max 350V
- Dielectric Strength: 1,800V AC
- Insulation Resistance: ≥10GΩ
- Temperature Range: -65°C to +150°C
- Resistance Temperature Coefficient: Referenced to 25°C, AR ±0.3%
- Thermal Handling: 3W in free air, derated based on case temperature
- Vibration & Shock Resistance: Complies with specified test conditions
- Lead Material: Tinned Copper
- Dimensions: Based on TO-220 standard, specifics in datasheet
Buy the Buy multicomp Power Resistor Part Number MCTR50FDE0470 Online
Discover the multicomp power resistor, rated at 50 watts, designed for high-power applications in industrial electronics, switching power supplies, and pulsing circuits. Its TO-220 package with molded case ensures protection and ease of mounting, ideal for demanding environments. It features a non-inductive design suitable for high-frequency and pulsing applications, with resistance ranges below 10Ω, and operates up to 350V. This resistor withstands extreme temperatures from -65°C to +150°C, with excellent dielectric strength and insulation resistance, ensuring durability and peak performance in your electronic projects.
Buy multicomp MCTR50FDE0470 now and experience reliable high-power performance with robust mountings and non-inductive stability for demanding applications.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCTR50FDE0470?
You can click on the BUY or RFQ button to purchase MCTR50FDE0470 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCTR50FDE0470?
You can download the MCTR50FDE0470 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCTR50FDE0470?
MULTICOMP-PRO
