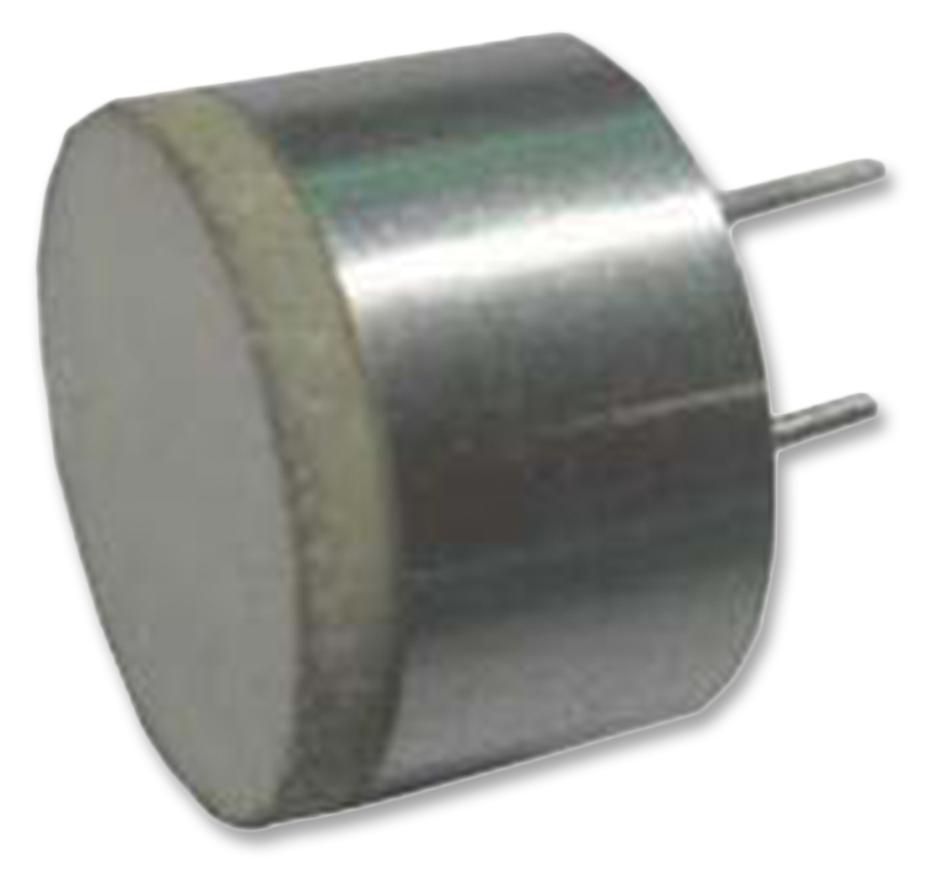

MULTICOMP PRO MCUSD13A300B09RS Ultrasonic Transceiver
The MCUSD13A300B09RS ultrasonic transceiver features a rugged sealed construction with an aluminum case, designed for water-proof applications. Operating at a center frequency of 300 ±15kHz, it offers short-range distance measurement from 0.04m to 1m and is suitable for level measurement, automation control, proximity detection, obstacle avoidance, and robotics. The device has a protection class of IP65, a maximum input voltage of 400Vp-p, and operates in temperatures from -20°C to +80°C, making it ideal for industrial environments requiring reliable ultrasonic sensing.
MULTICOMP PRO MCUSD13A300B09RS Ultrasonic Transceiver Specifications:
- Center Frequency: 300 ±15kHz
- Max. Input Voltage: 400Vp-p
- Sensitivity (echo): 2800mV (driven signal: 200Vp-p, 300kHz, at 20cm)
- Capacitance: 300 ±25% at 1kHz
- Protection Class: IP65
- Material: Aluminium
- Operating Temperature Range: -20°C to +80°C
- Storage Temperature Range: -35°C to +85°C
- Distance of Detection: 0.04m to 1m
- Dimensions: Millimetres, detailed drawing available
Buy the Multicomp MCUSD13A300B09RS – Reliable Ultrasonic Transceiver for Industrial Applications
Purchase the Multicomp MCUSD13A300B09RS ultrasonic transceiver online today. Its rugged aluminum case, IP65 waterproof protection, and precise 300kHz frequency make it ideal for industrial level measurement, obstacle detection, and automation control in harsh environments. With a detection range of 0.04m to 1m, maximum input voltage of 400Vp-p, and wide operating temperature from -20°C to +80°C, this sensor offers reliable long-term performance for robotics, proximity sensing, and water-proof applications. Get yours now for seamless integration and superior sensing accuracy.
Order your Multicomp MCUSD13A300B09RS ultrasonic sensor today and enhance your automation projects with dependable water-proof sensing capabilities.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCUSD13A300B09RS?
You can click on the BUY or RFQ button to purchase MCUSD13A300B09RS from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCUSD13A300B09RS?
You can download the MCUSD13A300B09RS datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCUSD13A300B09RS?
MULTICOMP PRO
