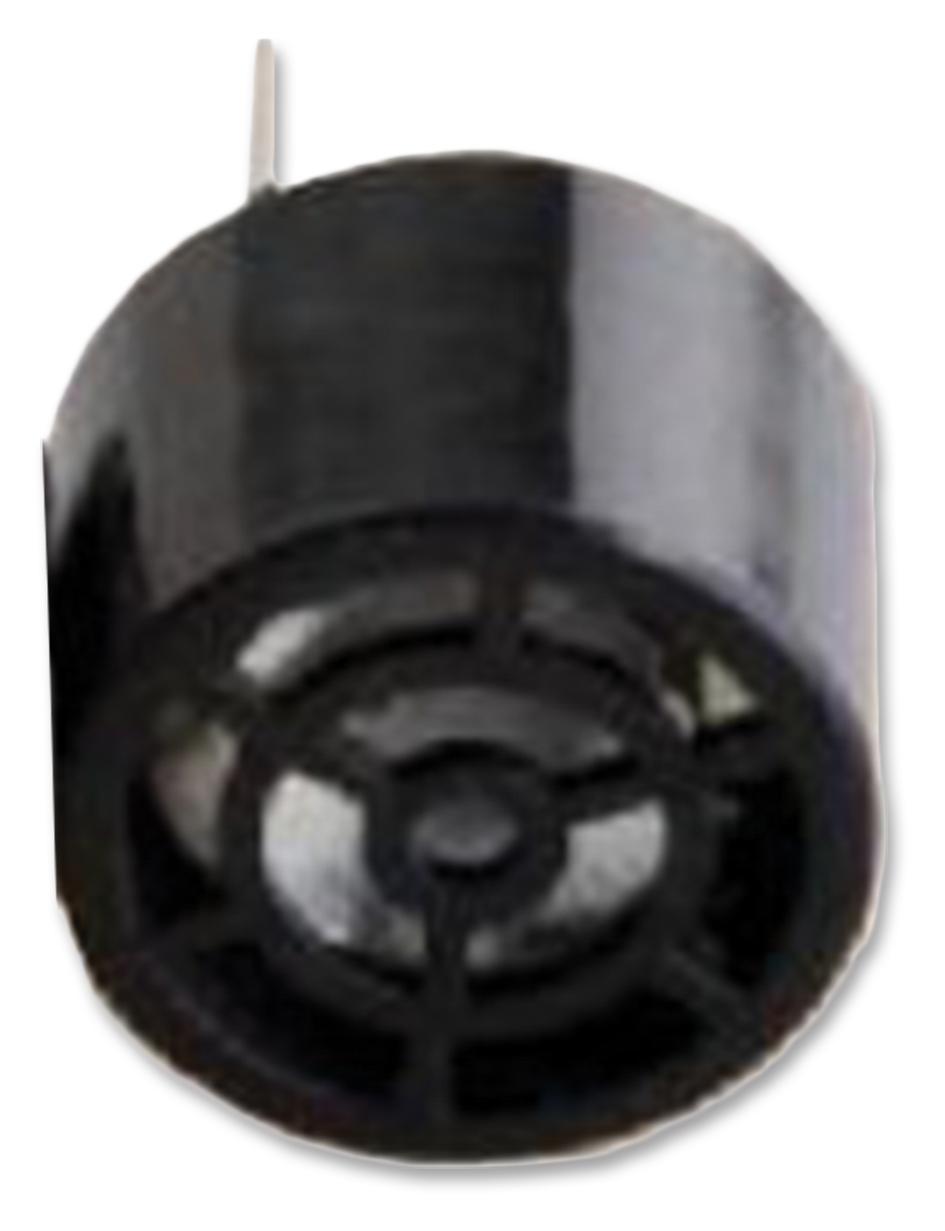

MULTICOMP-PRO MCUST16P40B12RO Ultrasonic Transmitter
The MCUST16P40B12RO is a 40 kHz ultrasonic transmitter with open structure, designed for high sensitivity and sound pressure, ideal for burglar alarms, automatic doors, and remote controls. It features a compact, lightweight design with ABS housing, operating within -35°C to +85°C temperatures. With a detectable range of 0.7 to 18 meters, it provides reliable performance by emitting ultrasonic signals and detecting echoes, making it suitable for various automation and security applications. Easy integration into different electronic systems with its robust construction and precise frequency response.
MULTICOMP-PRO MCUST16P40B12RO Ultrasonic Transmitter Specifications:
- Construction: Open Structure
- Using Method: Transmitter
- Centre Frequency: 40 + 1kHz
- Sound Pressure Level at 40kHz: minimum 110dB (10V/30cm)
- Capacitance: 2,500pF +25% at 1kHz
- Directivity: 50°
- Operating Temperature Range: -35°C to +85°C
- Storage Temperature Range: -35°C to +85°C
- Detectable Range: 0.7 to 18 meters
- Housing Material: ABS
- Dimensions: 1240.5 mm (length), 2-@1.0+0.1 mm (diameter), 10+0.5 mm (other dimensions)
- Frequency: 40kHz
- Sensitivity: High sensitivity at 40kHz
- Electronics: Includes matching circuitry for optimal performance
Buy the Multicomp Series Ultrasound Transmitter: MCUST16P40B12RO
Purchase the Multicomp MCUST16P40B12RO ultrasonic transmitter online to enhance your security or automation project. Its open structure and 40kHz frequency make it perfect for burglar alarms, automatic doors, and remote control applications. With a wide detectable range of 0.7 to 18 meters, high sensitivity, and durable ABS housing, this compact device ensures reliable ultrasonic signals and precise detection in varied environmental conditions. Order now for quick delivery and seamless integration into your system.
Get Multicomp MCUST16P40B12RO ultrasonic transmitter today—built for high sensitivity and reliable ultrasonic detection in automation and security systems.
