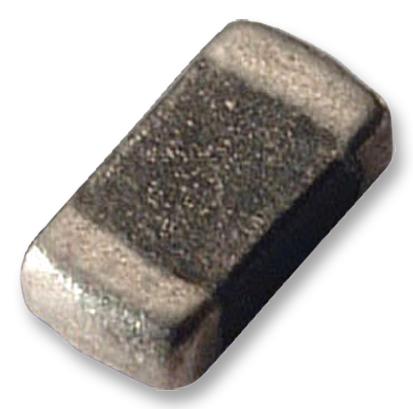

MULTICOMP PRO MCVZ0603M090AGT Multilayer Chip Varistor
The Multilayer Chip Varistor is a surface-mount transient voltage suppression device designed to protect electronic circuits from voltage surges and ESD. Manufactured with multilayer technology, it offers excellent voltage clamping ability, reliability under temperature and humidity stress, and bi-directional voltage protection. Its small size (1.6mm x 0.8mm x 0.9mm) makes it ideal for circuit board miniaturization, providing protection for mobile devices, high-speed data lines, and audio/video ports. Suitable for modern reflow and wave soldering processes, it withstands external interference and static discharge scenarios.
MULTICOMP PRO MCVZ0603M090AGT Multilayer Chip Varistor Specifications:
- Dimensions: Length 1.6mm ±0.15mm, Width 0.8mm ±0.15mm, Thickness 0.9mm max., Terminal electrode: Ni / Sn
- Operating temperature range: -55°C to +125°C
- Operating voltage range Vm(oc): 5.5V to 38V
- Capacitance: 120pF to 800pF at 1mA DC (reference values)
- Maximum surge current: up to 77A (at 8/20μs)
- Maximum surge energy: 0.1J
- Humidity resistance: 40±2°C, 90-95%RH, 500 hrs
- Temperature cycling: -55°C to +125°C, 5 cycles
- Mechanical reliability: Resistance to soldering heat, vibration, bending
- Solderability: 90% electrode coverage after 2 sec immersion at 230°C
- Material: Ni / Sn electrode, paper tape packaging for automated placement
Buy the Multicomp Series MCVZ0603 Multilayer Chip Varistor: MCVZ0603M090AGT
Enhance your circuit protection with the compact and reliable multicomp Multilayer Chip Varistor. Designed for high-performance ESD and transient surge suppression, it offers excellent voltage clamping and vibration resistance. Perfect for mobile devices, high-speed data lines, audio, and video ports, its small form factor (1.6mm x 0.8mm x 0.9mm) makes it ideal for modern electronic assemblies. Manufactured with multilayer technology, it ensures durability under extreme temperature and humidity conditions, providing long-lasting device protection and ensuring circuit safety in a variety of applications.
Order your multicomp Series MCVZ0603 M090AGT today and give your electronic protection solutions the dependable reliability they deserve.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCVZ0603M090AGT?
You can click on the BUY or RFQ button to purchase MCVZ0603M090AGT from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCVZ0603M090AGT?
You can download the MCVZ0603M090AGT datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCVZ0603M090AGT?
MULTICOMP PRO
