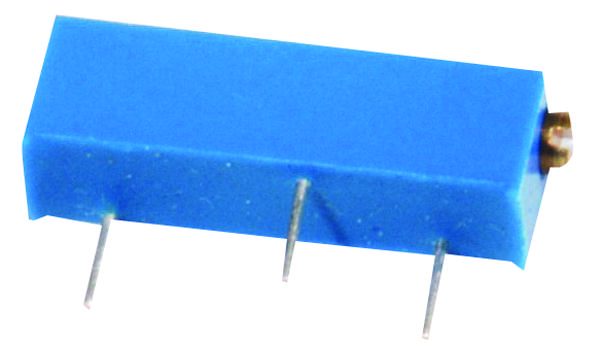

MULTICOMP PRO MCWIW10121204LF Trimmer Potentiometer
The MCWIW1012-1-103-LF is a 10 kΩ, 500 mW, 22-turn through-hole trimmer potentiometer with infinite resolution. It features a resistance tolerance of ±10% and dielectric strengths of 101.3 kPa at 600 VAC and 8.5 kPa at 350 VAC. The component is designed for reliable performance, offering a 200-cycle rotational life and temperature range from -55°C to +125°C. It complies with RoHS standards and is suitable for precision adjustment applications in industrial environments. The product ensures durability with a maximum torque of 15 nN-m and operates efficiently in vibration and shock conditions.
MULTICOMP PRO MCWIW10121204LF Trimmer Potentiometer Specifications:
- Resistance: 10kΩ, tolerance ±10%
- Power Rating: 0.5 Watt at 70°C, 0 Watt at 125°C
- Adjustment: 22 turns minimum
- Dielectric Strength: 101.3 kPa at 600 VAC, 8.5 kPa at 350 VAC
- Temperature Range: -55°C to +125°C
- Operating Environment: Vibration 98m/s², Shock 390m/s²
- Rotational Life: 200 cycles
- Torque: Max 15 nN-m
- RoHS Compliant
- Physical Dimensions: 3/4 inch rectangular, extended shaft option available
- Insulation Resistance: 500V DC, 1000MΩ Min.
- Resistance Variation: Contact resistance variation 3% or 30 max
- Adjustment Voltage Tolerance: 0.05%
- Material: Cement/industrial/sealed construction
Buy the Buy Multicomp Trimmer Potentiometer Part Number MCWIW1012-1-103-LF Online
Order the Multicomp Trimmer Potentiometer MCWIW1012-1-103-LF online today. This high-quality 10kΩ, 22-turn potentiometer offers infinite resolution, precise adjustment, and durable construction suitable for industrial and electronic applications. With a power rating of 0.5 watt at 70°C, operating from -55°C to +125°C, and RoHS compliance, it ensures consistent performance and reliability. Perfect for engineers and technicians seeking accurate control in demanding environments. Purchase now for quick delivery and experience excellent quality and support.
Buy Multicomp MCWIW1012-1-103-LF precision trimmer potentiometer now and experience reliable adjustment in industrial applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCWIW10121204LF?
You can click on the BUY or RFQ button to purchase MCWIW10121204LF from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCWIW10121204LF?
You can download the MCWIW10121204LF datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCWIW10121204LF?
MULTICOMP PRO
