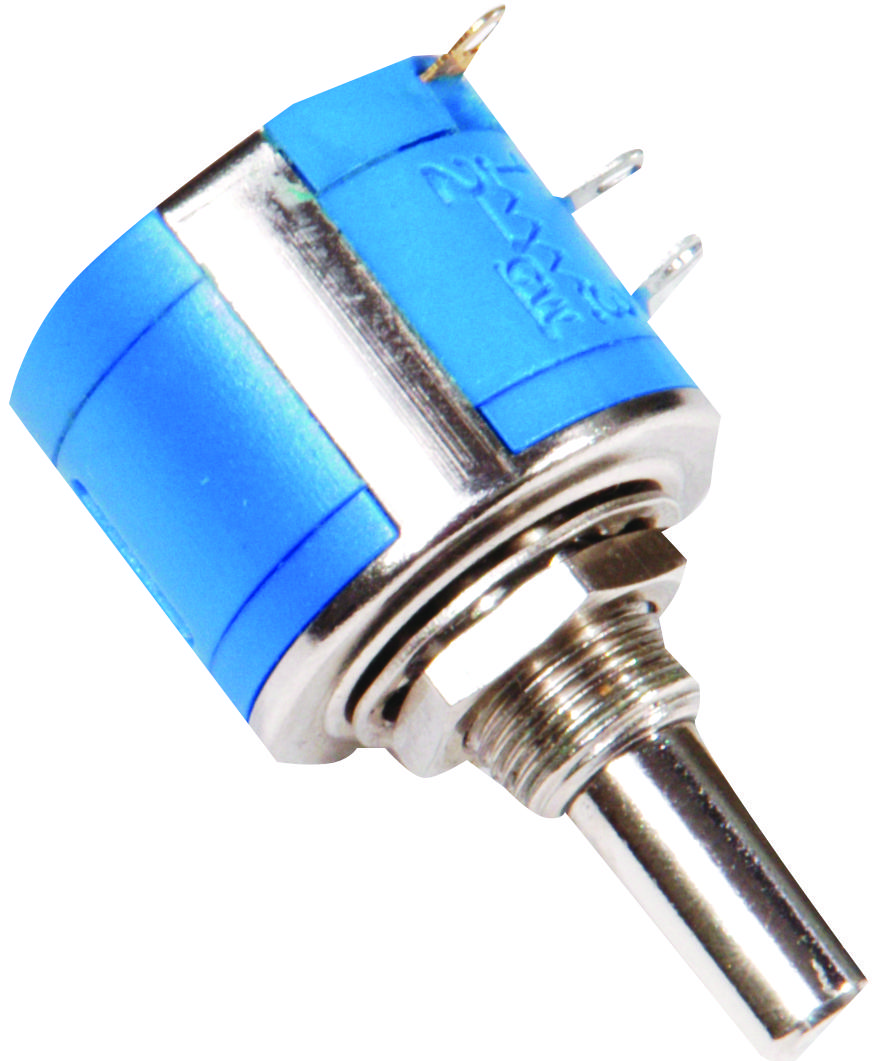

MULTICOMP PRO MCWWPT10104LF Wirewound Potentiometer
The multicomp wirewound precision potentiometer is a reliable industrial component designed for accurate resistance adjustment in control systems. It features a multiturn, wirewound construction with a metal shaft and bushing for durability. With a resistance range from 100Ω to 100kΩ and a 210-turn configuration, it offers a resistance tolerance of ±5%. The potentiometer ensures excellent electrical stability, with an effective electrical angle of 360°, and is suitable for use in industrial automation, instrumentation, and feedback control applications. Its robust design supports high environmental and mechanical durability, including shock and vibration resistance.
MULTICOMP PRO MCWWPT10104LF Wirewound Potentiometer Specifications:
- Resistance Range: 100Ω to 100kΩ
- Number of Turns: 210
- Resistance Tolerance: ±5%
- Effective Electrical Angle: 360°
- Temperature Range: -55°C to +125°C
- Power Rating: 2 Watt (at 70°C)
- Mechanical Angle: 360° minimum
- Shaft Diameter: 6mm
- Dielectric Withstanding Voltage: 900V AC
- Insulation Resistance: 1000MΩ at 500V DC
- Environmental Resistance: Vibration 98m/s², Shock 490m/s²
- Resistance Shift: Max 5%
Buy the Multicomp Wirewound Potentiometer – Reliable Resistance Adjustment for Industrial Applications
Enhance your control systems with the multicomp wirewound potentiometer, offering precise resistance adjustment from 100Ω to 100kΩ. Its multiturn design ensures high accuracy, with a robust construction featuring a 6mm metal shaft and bushing for durability. Suitable for automation, instrumentation, and industrial applications, it withstands harsh environments with resistance to shock and vibration. Achieve reliable performance with a 2W power rating and excellent stability across wide temperature ranges. Buy online now and upgrade your project’s precision and dependability immediately.
Order your multicomp wirewound potentiometer today and enhance your industrial control projects with dependable precision and durability.
