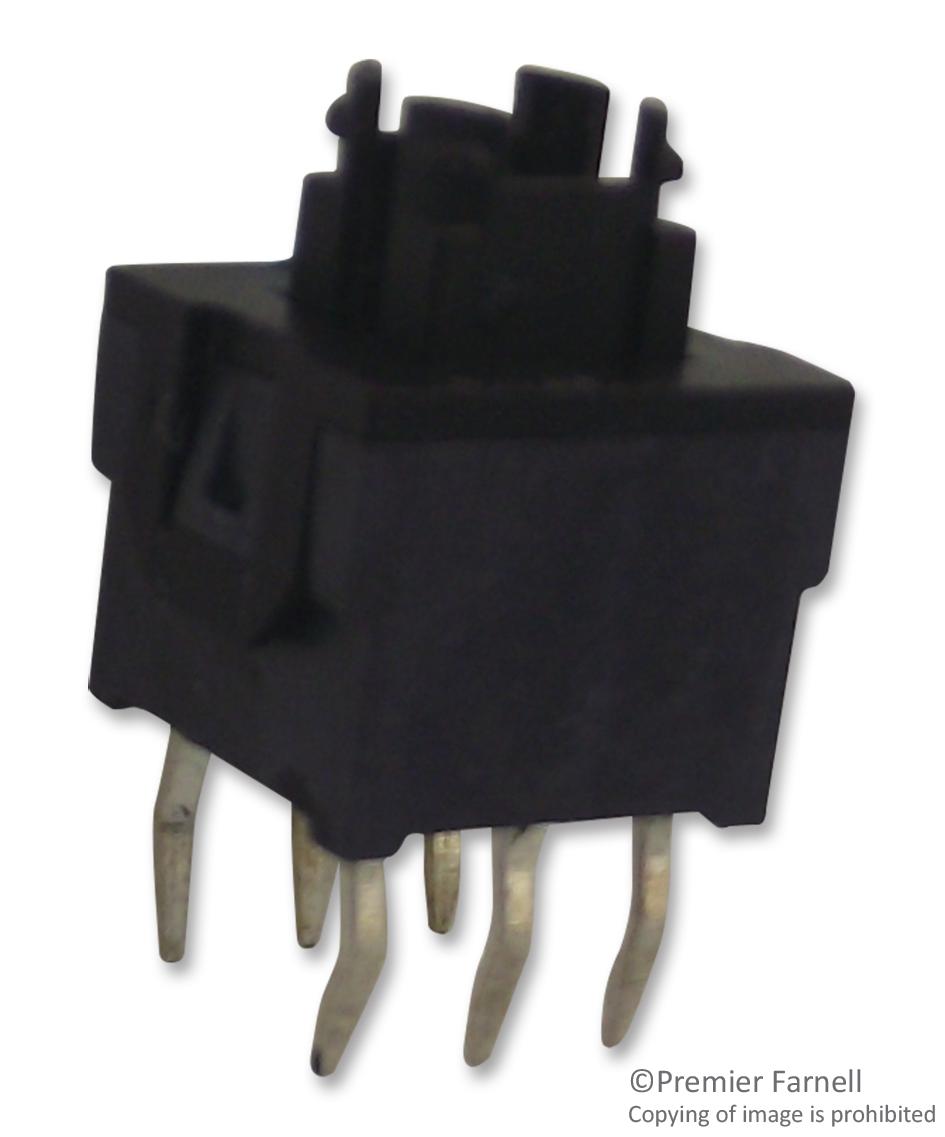

MULTICOMP PRO MCYCA046A Push-button switch with LED indicators
The MCPSD Series switch features durable construction suitable for various electronic applications. It includes a push-button on-moment switch with options for different LED indicators, such as red, yellow, green, and blue, enhancing visual signaling. Constructed with a black or gray glass-filled nylon housing and a copper alloy, silver-plated contact, it offers reliable operation in industrial and automation settings. The switch boasts an insulation resistance of 50 MΩ and a contact resistance of 50 mΩ, with an actuation force of 1250 ± 100g, and a travel distance of 1.5mm ± 0.4mm. Its operating temperature range is from -20°C to 70°C, ensuring stable performance across various environments. Designed for durability, it supports up to 50,000 cycles, making it ideal for demanding control systems, instrumentation, and machinery interfaces requiring high durability, precise tactile feedback, and integrated LED indicator lighting.
MULTICOMP PRO MCYCA046A Push-button switch with LED indicators Specifications:
- Contact Resistance: 50mΩ Max.
- Insulation Resistance: 50MΩ Min.
- Electrical Life: 50,000 cycles
- Actuation Force: 1250 ± 100g
- Travel: 1.5mm ± 0.4mm
- Full Travel: 4.10 ± 0.60mm
- Contact Travel: 1.0mm ± 0.4mm
- Operating Temperature Range: -20°C to 70°C
- Materials: Case - LCP, Black; Housing - Glass filled Nylon 6/6, Black; Actuator - Glass filled Nylon 6/6, Gray; Contact - Copper Alloy, Silver Plated
- Physical Dimensions: Length 8.50mm, Width 7.50mm, Height 4.60mm, Actuator Diameter 3.0mm
- LED Indicators: Red, Yellow, Green, Blue; Peak Viewing Angle: 140°
- Maximum Current: 1.5A, Max Voltage: 30V DC
- Water Clear Lens Option Available
Buy the Buy multicomp MCPSD Series Part Number MCYCA046A Online
Discover the multicomp MCPSD series, a robust push-button switch with LED options in red, yellow, green, or blue, designed for high durability and precise tactile feedback. Perfect for industrial automation, control panels, and instrumentation, it features a compact construction with a 50,000-cycle life expectancy, operating smoothly from -20°C to 70°C. The switch’s high insulation resistance, low contact resistance, and sealed design ensure consistent performance in harsh environments. Easily purchase online for your control system upgrades and automation needs.
Buy multicomp MCYCA046A now and experience reliable operation with built-in LED indicators in a durable switch designed for demanding control applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCYCA046A?
You can click on the BUY or RFQ button to purchase MCYCA046A from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCYCA046A?
You can download the MCYCA046A datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCYCA046A?
MULTICOMP PRO
