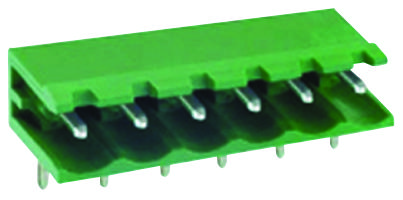

MULTICOMP PRO ME01050804 Pluggable Terminal Block Header
This pluggable terminal block header features a right-angle PCB design with open end, 5.08mm pitch, and high current rating of 16 Amp up to AC300V. Made with a green polyamide 66 insulating body and tin-plated brass solder pins, it offers reliable electrical connectivity and durability. The terminal supports insulation withstand voltage of at least AC2,000V and insulation resistance exceeding 2,000 MΩ DC 500V. Suitable for various PCB applications, it operates between -40°C to +105°C and ensures secure connection with its open-end, right-angle mounting style.
MULTICOMP PRO ME01050804 Pluggable Terminal Block Header Specifications:
- Current rating: 16 Amp AC300V
- Insulation withstand voltage: AC2,000V minimum
- Insulation resistance: >2,000 MΩ DC 500V
- Operating temperature: -40°C to +105°C
- Pitch: 5.08mm (0.2")
- Pole options: 2, 4, 5, 6, 7, 8, 10, 12
- Material: Polyamide 66 - Green
- Plating/Finish: Tin-plated brass pins
- Dimensions vary with pole count, e.g., 4 poles: 15.24mm (0.6")
- Open end, right-angle PCB mount design
- UL and RoHS compliant
- Suitable for PCB mounting in industrial and automation systems
Buy the Buy Multicomp Pro Pluggable Terminal Block Header Part Number ME010-50804 Online
Purchase the Multicomp Pro pluggable terminal block header online to ensure secure, durable connections in your electronic and industrial projects. Featuring a right-angle PCB mount with open end for easy wiring, this terminal supports 16 Amp current and withstands voltage up to AC300V. Its green polyamide body and tin-plated brass pins provide excellent durability and electrical performance. With a broad range of pole options from 2 to 12, it is ideal for various PCB layouts. Buy now to enhance your circuit connections with high-quality, RoHS-compliant components designed for long-lasting reliability.
Get Multicomp Pro ME010-50804 today—built for reliable PCB connections in industrial applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO ME01050804?
You can click on the BUY or RFQ button to purchase ME01050804 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part ME01050804?
You can download the ME01050804 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of ME01050804?
MULTICOMP PRO
