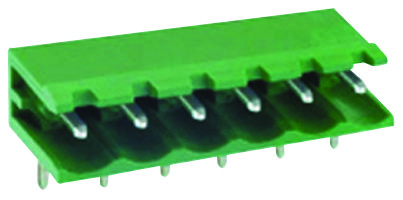

MULTICOMP PRO ME01050806 Pluggable Terminal Block Header
The pluggable terminal block header offers a compact, reliable connection solution for PCB applications with open end, right-angle design, and 5.08mm pitch. Rated for 16 Amp AC300V, it features an insulating polyamide 66 body with tin-plated brass solder pins, withstanding voltages of at least 2000V AC and insulation resistance over 2000MQ. Operating within -40°C to +105°C, the header ensures safe, durable connections for industrial and electronic projects. Various pole options are available, from 2 to 12 poles, tailored for different circuit requirements.
MULTICOMP PRO ME01050806 Pluggable Terminal Block Header Specifications:
- Current rating: 16 Amp AC300V
- Insulation withstand voltage: 2,000V AC minimum
- Insulation resistance: >2,000MQ DC500V
- Operation temperature: -40°C to +105°C
- Pitch: 5.08mm (0.2")
- Material: Polyamide 66 - Green
- Solder Pin Material: Brass, Tin plated
- Dimensions vary with pole count (e.g., 2 poles: 10.16mm, 4 poles: 15.24mm, up to 12 poles: 60.96mm)
- Open end, right-angle PCB mounting
- Compatible with multiple pole configurations (2 to 12 poles)
Buy the Multicomp Series Open End Pluggable Terminal Block Header: ME010-50806
Upgrade your electronic assemblies with our premium pluggable terminal block header featuring open end and right-angle mounting. Designed with a 5.08mm pitch and rated for 16 Amp AC300V, it provides secure, durable connections. Made from polyamide 66 with tin-plated brass pins, it withstands high voltages and temperature extremes from -40°C to +105°C. Available in various pole configurations up to 12 poles, this connector ensures versatility and reliability in industrial, automation, and control applications. Purchase online now for fast delivery and dependable performance.
Order your Multicomp Series ME010-50806 open end pluggable terminal header today and ensure reliable PCB connections for your electronic projects.
