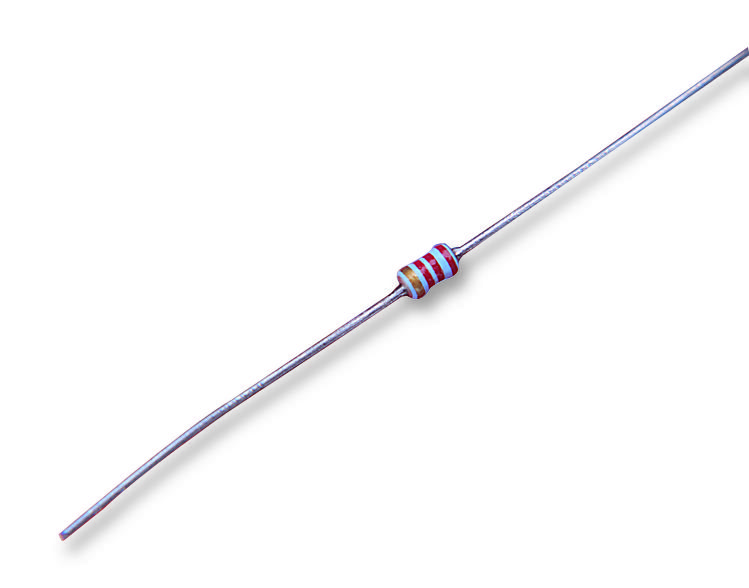

MULTICOMP-PRO MF0W2FFE006KIL Metal Film Resistor Kit
This metal film resistor kit offers 1/2W power rating with 1% tolerance, ideal for precision applications. Compliant with RoHS standards, it features a ceramic body, metal film resistance layer, tin-plated steel end caps, and annealed copper leads coated with tin for durability. The resistors provide wide operational temperature range from -55°C to +155°C, with resistance values from 10 ohms to 1 megaohm. Suitable for PCB assembly, soldering, and electronic circuits, it guarantees insulation resistance of at least 10,000 MQ, withstands overload voltages of 700V, and complies with test standards for durability.
MULTICOMP-PRO MF0W2FFE006KIL Metal Film Resistor Kit Specifications:
- Power Rating: 0.5W at 70°C, continuous operation at ambient temperature of 70°C
- Resistance Range: 10Ω to 1MΩ, Tolerance: 1%, based on E-96 series
- Max Operating Voltage: 350V, Max Overload Voltage: 700V
- Operating Temp Range: -55°C to +155°C, Dielectric Withstanding Voltage: 700V
- Insulation Resistance: Minimum 10,000MQ, Temperature Coefficient: +50 PPM/°C Max
- Construction: Ceramics body, Metal film layer, Steel end caps, Copper wire leads coated with tin
- Resistance to Soldering Heat: Resistance change rate +(1% +0.05Ω) Max
- Vibration Resistance, Load Life, Solderability, and Pulse Overload tested according to JIS standards
- Dimensional Details: D Max 3.5mm, L Max 10mm, H Max 0.6mm, suitable for PCB mounting
- Marking: Colour coding per JIS C 0802, with resistor values and tolerance
Buy the Multicomp Metal Film Resistor Kit – Reliable 1/2W Precision Resistors for Industrial Applications
Purchase the multicomp metal film resistor kit online for your electronic projects. Featuring 1/2W power capacity, 1% tolerance, and wide temperature range, this kit ensures reliable performance in industrial and professional applications. Its high-quality ceramic body, metal film layer, and tin-plated steel end caps guarantee durability, stability, and excellent electrical performance. Ideal for PCB assembly, soldering, and precision circuits, get your resistor kit now for consistent, long-lasting operation in demanding environments.
Get multicomp metal film resistor kit today—perfect for high-precision electronic assemblies and durable circuitry.
