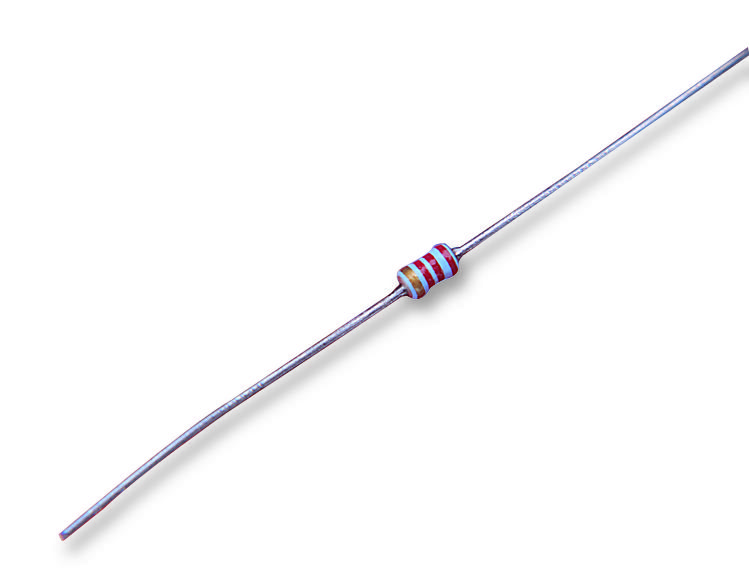

MULTICOMP-PRO MF0W2FFE024KIL metal film resistor kit
This metal film resistor kit includes 100 resistors with a power rating of 0.5W, tolerance of ±1%, and resistance values ranging from 10Ω to 1MΩ. Constructed with ceramic bodies, metal film resistance layers, tin-plated steel end caps, and annealed copper leads coated with tin, these resistors are suitable for precise applications. They feature high insulation resistance of at least 10,000 MΩ, a temperature coefficient within +50 PPM/°C, and dielectric withstand voltage of 700V. Designed for reliable performance in electronic circuits, they meet RoHS compliance and are ideal for detailed electronic work and manufacturing.
MULTICOMP-PRO MF0W2FFE024KIL metal film resistor kit Specifications:
- Power Rating: 0.5W at 70°C, suitable for continuous operation, maximum voltage 350V, overload voltage 700V, dielectric withstand voltage 700V, operating temp: -55°C to +155°C, ambient temp: 70°C.
- Resistance Range: 10Ω to 1MΩ, Resistance Tolerance: ±1%, Resistance Stability: within +50 PPM/°C, Resistance Values: E-24 series, Resistance measurement error: ≤1%.
- Construction: Ceramic body, metal film resistance layer, steel tin-plated end caps, annealed copper leads with tin coating, epoxy resin insulation, color coding per JIS C 0802.
- Electrical: Insulation resistance ≥10,000 MΩ, short-time overload resistance within +0.5%, resistance change rate during overload testing ≤0.5%, solderability coverage ≥95%, soldering temperature: 235–255°C, peak temp 260°C, resistance to soldering heat within +1%.
- Mechanical & Environmental: Resistance to humidity (load life test of 1000 hours at 70°C), vibration resistance, temperature cycling (−55°C to +155°C), and solvent resistance with no deterioration. Clear marking with color code for easy identification.
Buy the Buy multicomp Metal Film Resistor Kit Part Number MF0W2FFE024KIL Online
Order the multicomp Metal Film Resistor Kit online today and experience reliable, high-precision components ideal for electronic circuitry, manufacturing, and repair. With 100 resistors ranging from 10Ω to 1MΩ, each rated at 0.5W and with ±1% tolerance, this kit ensures accurate performance in demanding applications. Built with durable ceramic bodies, metal film layers, and tin-plated steel end caps, these resistors resist humidity, temperature fluctuations, and mechanical stress. Perfect for circuit assembly, testing, and maintenance, this comprehensive kit guarantees quality, efficiency, and long-term stability for your electronic projects.
Get multicomp Metal Film Resistor Kit MF0W2FFE024KIL today—designed for precision and long-lasting durability in your electronic projects.
