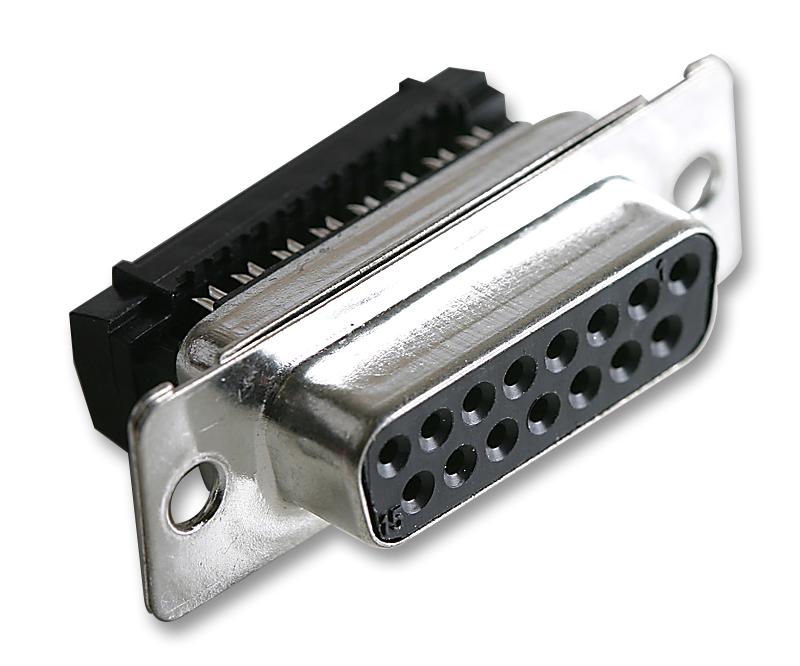

MULTICOMP PRO MH10576 D-sub Socket
The MH10576 is a 15-position unthreaded D-sub socket featuring copper alloy contacts plated with 1.5 microns of tin and 0.2 microns of gold. It is equipped with a black glass-filled polyester insulator and a stamped steel shell plated with tin. This female connector supports IDC/IDT contact termination, with optional 4-40 UNC threads available. Designed for compatibility with standard back shells, it offers electrical ratings of 1.5A and 1000V, along with a 5000 MΩ insulation resistance and an operating temperature range from -55°C to +125°C. Suitable for communication and networking applications, it is part of the Multicomp product line, rated 4.6 out of 5 stars, and comes with a 12-month limited warranty.
MULTICOMP PRO MH10576 D-sub Socket Specifications:
- Electrical: Working Current 1.5A, Test Voltage 1000V, Insulation Resistance 5000 MΩ
- Material: Insulator - Glass filled polyester black, Shell - Stamped steel tin plated, Contacts - Copper alloy
- Contact Plating: 1.5 micron Tin and 0.2 micron gold
- Dimensions: Pitch 2.77 mm, overall length 25 mm, width 9 mm, height 15 mm
- Temperature Range: -55°C to +125°C
- Design: Supports IDC/IDT contact termination, compatible with standard back shells, optional 4-40 UNC threads
- Features: Black insulator, tin-plated shell, gold/tin plated contacts, supports strain relief, easy to assemble
Buy the Multicomp Metal Dimple Connectors – Reliable IDC for Industrial Applications
Enhance your electronic assembly with the durable and reliable D-sub socket designed for excellent electrical performance and easy IDC termination. Manufactured with high-quality materials including copper contacts plated with tin and gold, and a sturdy black polyester insulator, this connector supports up to 1.5A and 1000V. Its versatile design allows for various configurations and compatibility with standard back shells, making it ideal for communication and networking projects. Purchase online today for fast delivery and quality assurance.
Buy Multicomp Metal Dimple Connectors now and experience unmatched reliability and performance in industrial wiring and communication setups.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MH10576?
You can click on the BUY or RFQ button to purchase MH10576 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MH10576?
You can download the MH10576 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MH10576?
MULTICOMP PRO
