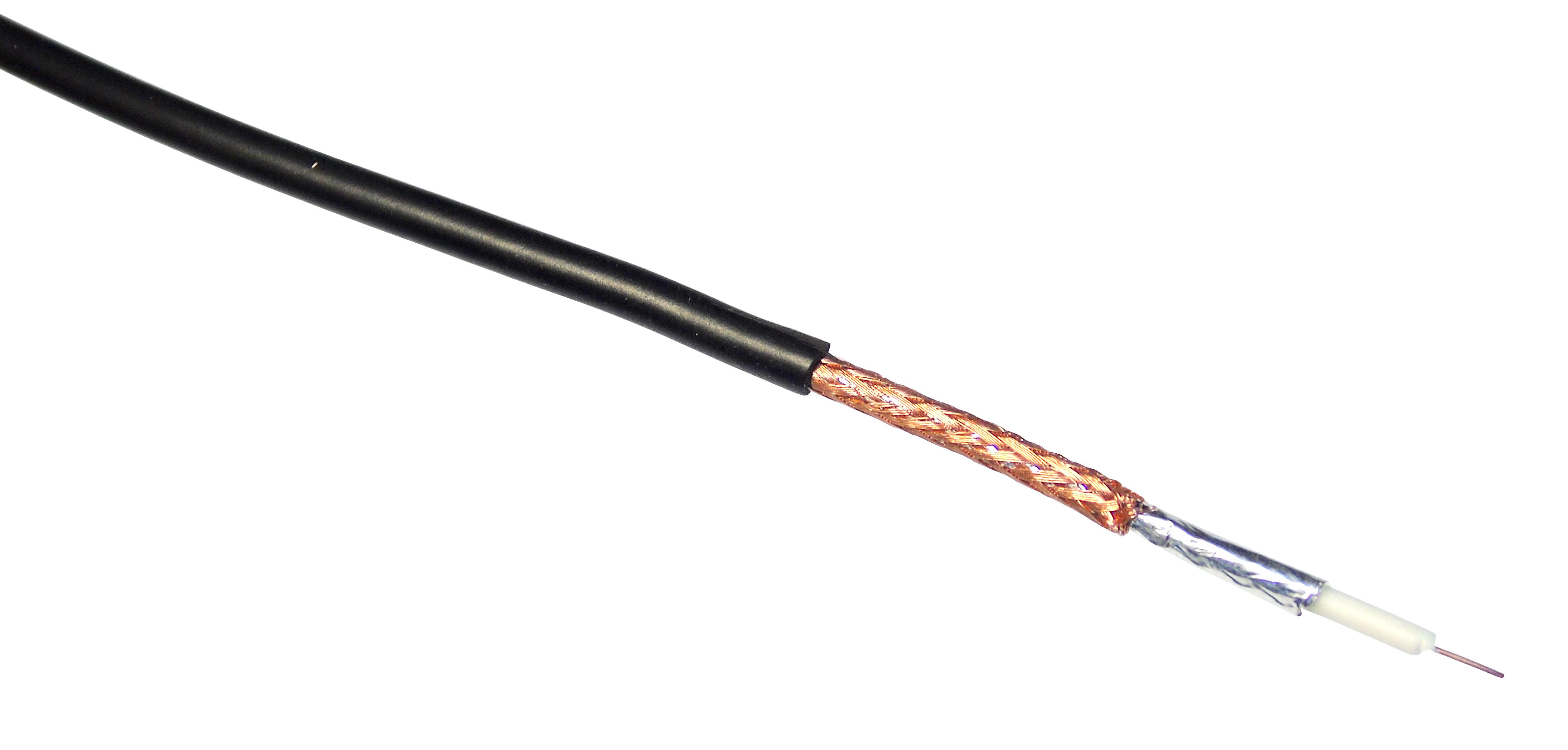

MULTICOMP PRO MINIRG59 Coaxial Cable
Mini RG59 coaxial cable line offers reliable signal transmission with a 75-ohm impedance, copper clad steel core, foam PE dielectric, and durable PVC jacket. Designed for video and CCTV applications, this compact cable features excellent shielding with foil and copper braid layers, ensuring minimal signal loss. Operating within temperatures from -40°C to 75°C, it provides low attenuation rates across a broad frequency spectrum up to 1000 MHz. Suitable for professional and home installations, the cable's construction guarantees enhanced shielding effectiveness and longevity for consistent performance.
MULTICOMP PRO MINIRG59 Coaxial Cable Specifications:
- Impedance: 75Ω ± 30Ω
- Capacitance: 52pF/m ± 2pF/m
- Velocity of Propagation: 185%
- Return Loss: 220dB (5-300 MHz), 218dB (300-1000 MHz)
- Screening Effectiveness: 275dB (5-1000 MHz)
- Operating Temperature Range: -40°C to 75°C
- Attenuation (@20°C): 13 dB/100m at 50 MHz, 24 dB/100m at 200 MHz, 33 dB/100m at 400 MHz, 41 dB/100m at 600 MHz, 47 dB/100m at 800 MHz, 53 dB/100m at 1000 MHz
- Inner Conductor: Copper Clad Steel 0.41 mm
- Dielectric: Foam PE 1.9 mm
- First Shield: AUP Foil 2.05 mm
- Second Shield: 90% Bare Copper Braid 2.55 mm
- Jacket Material: PVC 3.6 mm
Buy the Multicomp Series Mini RG59 Coaxial Cable: MINIRG59
Order the Multicomp Mini RG59 coaxial cable online today for your video and CCTV installations. Designed for high performance with 75Ω impedance, copper clad steel core, and premium shielding layers for minimal signal loss and interference. Its durable PVC jacket ensures long-lasting use in various environments, operating efficiently from -40°C to 75°C. With low attenuation across broad frequencies up to 1000 MHz, this compact coaxial cable guarantees clear, stable signals, making it the perfect choice for professional and residential networking needs.
Get Multicomp Mini RG59 coaxial cable today—built for reliable video transmission with excellent shielding and durability.
