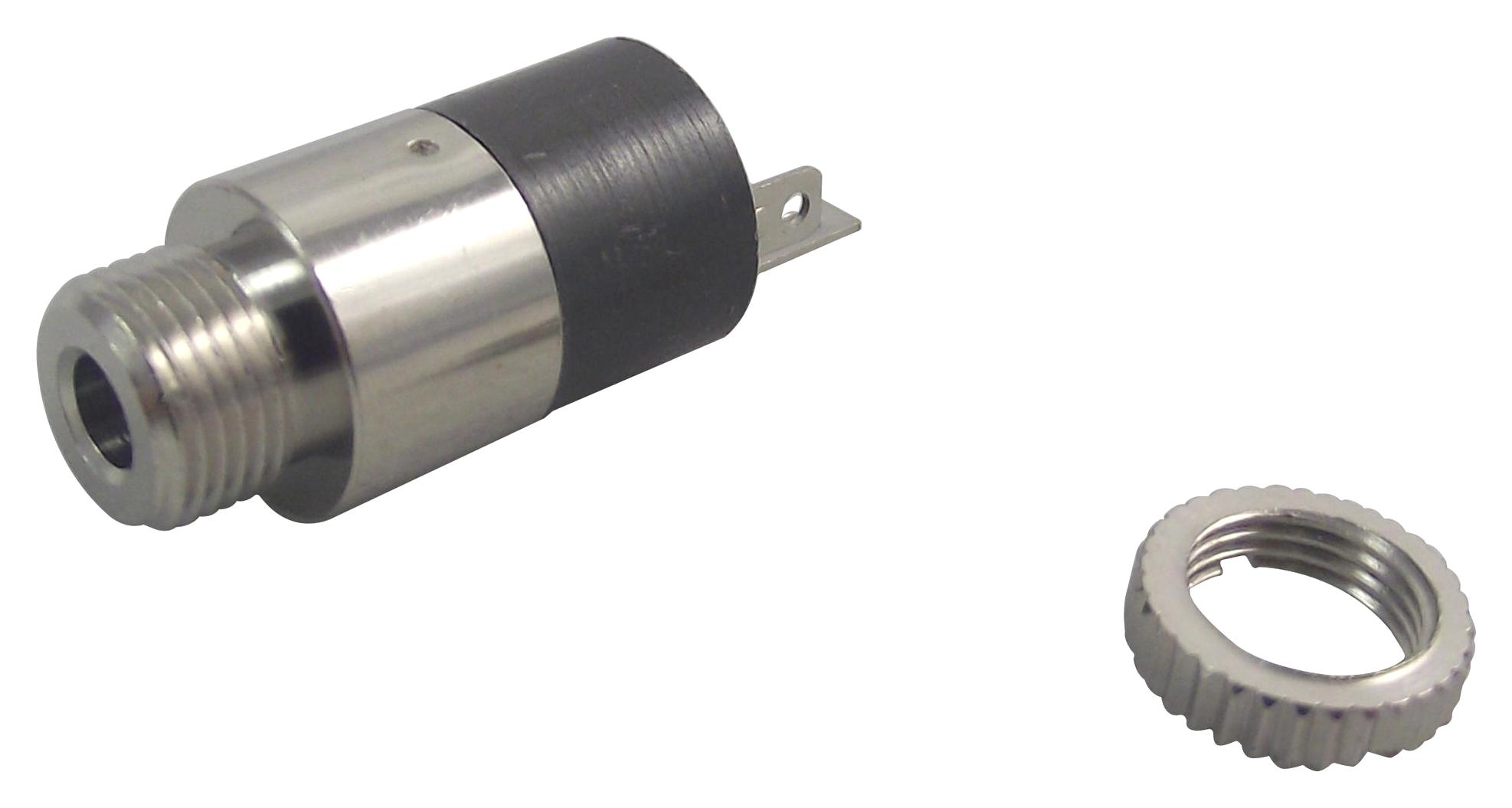

MULTICOMP PRO MJ070N 3-Pin Stereo Jack Socket
The MJ-070N is a 3-pin, 2.5mm RCA stereo female socket with a durable metal body and gold/nickel plated contacts, ideal for audio equipment. This chassis-mount connector features solder termination and offers reliable electrical parameters, including a maximum contact resistance of 30mΩ and insulation resistance of 100MΩ at 500VDC. Designed to operate between -25°C and +80°C, it provides high-quality sound connectivity for professional and consumer audio devices. Its compact design and robust construction ensure long-lasting performance and easy installation in various audio system applications.
MULTICOMP PRO MJ070N 3-Pin Stereo Jack Socket Specifications:
- Maximum Contact Resistance: 30mΩ
- Insulation Resistance: 100MΩ at 500VDC
- Dielectric Strength: 500V AC for 1 minute
- Minimum Life Cycle: 5,000 cycles
- Operation Temperature Range: -25°C to +80°C
- Insertion and Extraction Force: 4N to 20N (0.4kgf to 2kgf)
- Connector Type: Receptacle
- No. of Contacts: 3
- Gender: Female
- Contact Termination: Solder
- Contact Plating: Gold/Nickel
- Pin Size: 2.5mm
- Connector Mounting: Chassis
- Connector Mounting Orientation: Panel
- Housing Type: Metal
Buy the multicomp Series 2.5mm Stereo Jack Socket: MJ070N
Purchase the multicomp Series 2.5mm stereo jack socket MJ070N today online and enhance your audio equipment with reliable, high-quality connectivity. This 3-pin female socket features a sturdy metal housing, gold and nickel plated contacts, and solder termination for secure installation. Designed to withstand a temperature range of -25°C to +80°C, it ensures long-lasting durability and consistent performance. Perfect for professional audio and consumer devices, this socket ensures excellent signal transfer, durability through 5,000 cycles, and easy mounting in chassis or panel applications. Buy now for superior audio connectivity.
Order your multicomp Series 2.5mm stereo jack socket MJ070N today and give your audio projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MJ070N?
You can click on the BUY or RFQ button to purchase MJ070N from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MJ070N?
You can download the MJ070N datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MJ070N?
MULTICOMP PRO
