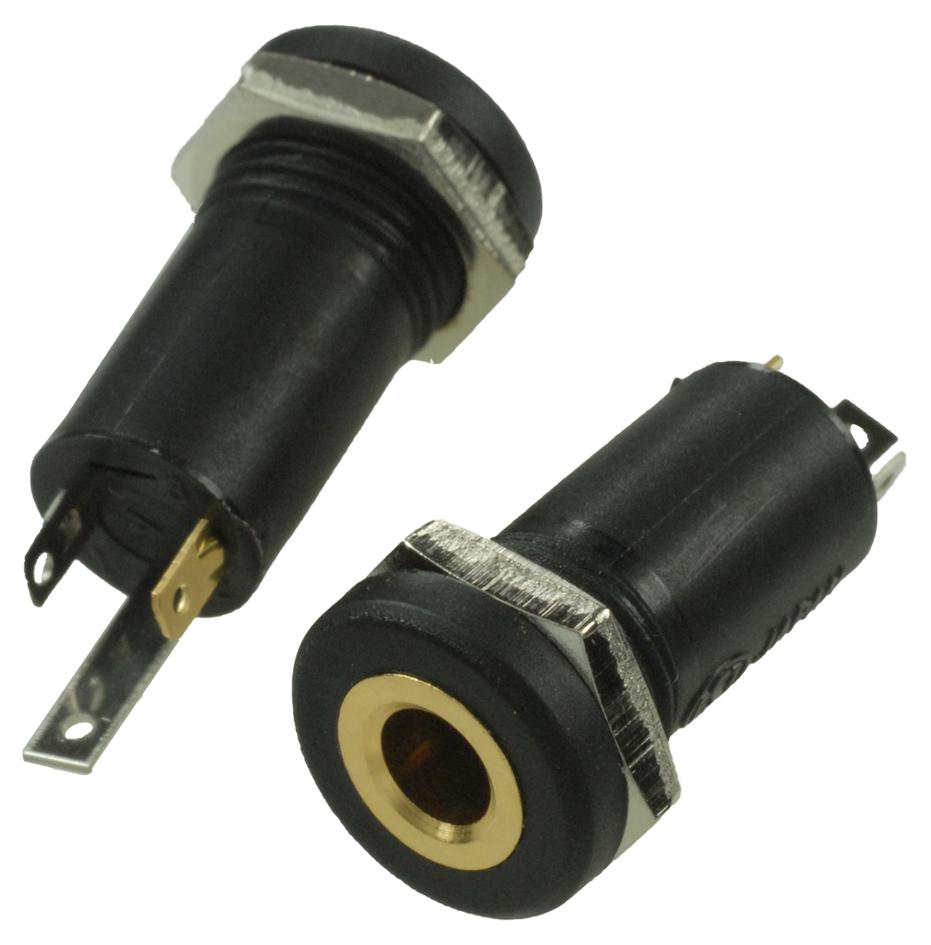

MULTICOMP PRO MJ073H 3.5mm Audio Jack
The MJ-073H from Multicomp Pro is a 3-pole, 3.5mm panel mount audio jack designed for reliable audio connections in professional and consumer applications. It features a durable polyamide 6.6 housing with UL94V-2 flammability rating, gold-plated contacts for optimal conductivity, a BSBM sleeve for enhanced durability, and a steel hexagonal nut with nickel finish for secure mounting. The jack offers a dielectric strength of 500 VAC for 1 minute, maximum contact resistance of 50 milliohms, and insulation resistance of at least 100 megaohms at 500 VDC. Its compact, rugged design ensures stable performance in various electronic projects and equipment.
MULTICOMP PRO MJ073H 3.5mm Audio Jack Specifications:
- Dielectric Strength: 500V AC for 1 minute
- Max. Contact Resistance: 50 milliohms
- Min. Insulation Resistance: 100 megaohms at 500V DC
- Housing Material: PA66 nylon with UL94V-2 flammability rating
- Contact Material: Gold-plated FAB-EH
- Sleeve Material: BSBM
- Hex Nut Material: Steel with Ni finish
- Dimensions: 99.8 mm length, MB-PO.75 t=2 MAX.
- Flammability: UL94V-2
- Suitable for: 3.5mm audio applications, 3-pole connections
- Application: Professional audio, consumer audio devices, audio interface connectors
Buy the Buy Multicomp Pro 3.5mm Jack Part Number MJ073H Online
Order the Multicomp Pro 3.5mm audio jack online today to ensure high-quality, dependable sound connections for your electronic projects or professional devices. This robust 3-pole jack features gold-plated contacts for optimal conductivity, UL94V-2 flame retardant housing, and a steel nut for secure mounting. Perfect for audio equipment, panels, and professional audio systems, it provides excellent insulation resistance and dielectric strength, ensuring long-lasting performance. With quick delivery and trusted supplier support, enhance your audio setup now with this reliable component.
Get Multicomp Pro MJ073H today—designed for durable and reliable audio connections in professional equipment.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MJ073H?
You can click on the BUY or RFQ button to purchase MJ073H from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MJ073H?
You can download the MJ073H datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MJ073H?
MULTICOMP PRO
